FRYERS

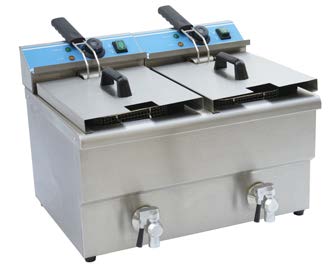

Electric and gas fryers, donut fryers and corn dog fryers built for high-volume, consistent frying.

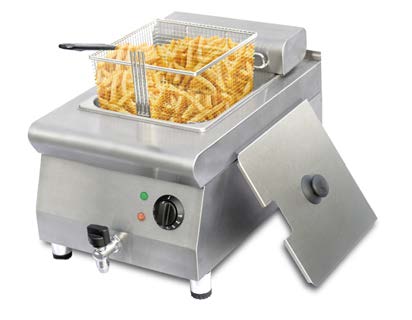

3250W powerful heater with 8 Liters oil capacity
Stainless steel structure with drain tap
Thermostat 50-190 C
230 C Hi-limiter ensures safety operation
Stainless steel tank with oil level
Micro-switch for safety of operators
Heater would stop automatically once heater is lifted up
Stainless steel night cover with Bakelite handle, cool to touch
Stainless steel board to collect fried crumbs from food and protect heater
Power and heating indicators
Nickel coating basket
Heavy duty anti slippery foot
Heating elements can be lifted for easy cleaning
V shape cold zone to prevent food debris scorching

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEF8L-V	8 L	3250 W / 220~240V	330 x 480 x 345 mm 13 x 19 x 13.6 inch	590 x 370 x 340 mm 23 x 14.5 x 13 inch	10.5 kg 23 lbs	12 kg 24 lbs

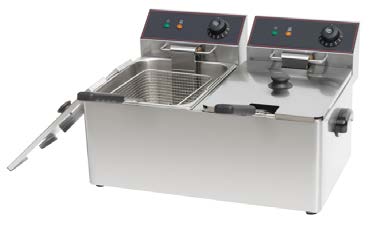

PEF8L-2V	2 x 8 L	2 x 3250 W / 220~240V	600 x 480 x 345 mm 24 x 19 x 14 inch	590 x 680 x 340 mm 23 x 27 x 13 inch	20 kg 44 lbs	22 kg 48.5 lbs

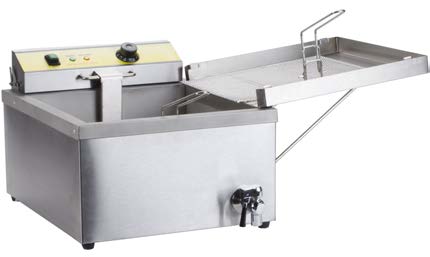

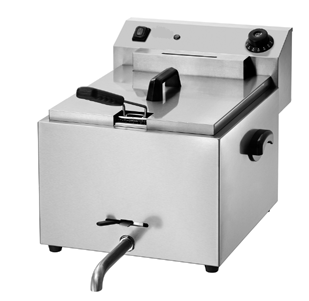

3000W powerful heater with 11 Liters oil capacity
Stainless steel structure with drain tap
Thermostat 30-200 C
Water-proof on/off switch
230 C hi-limiter ensures safety operation
Stainless steel tank with oil level
Micro-switch for safety of operators
Heater would stop automatically once heater is lifted up
Stainless steel night cover with Bakelite handle, cool to touch
Wiring grid to collect fried crumbs from food and protect heater
Power and heating indicators
Nickel coating wire mesh trays
Heavy duty anti slippery foot
Heating elements can be lifted for easy cleaning
Two functions lid: cover during night, draining tray while frying

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEFDF	11 L	3000 W / 220~240 V	545 x 460 x 355 mm 55 x 18 x 14 inch	680 x 560 x 480 mm 27 x 22 x 19 inch	17 kg 37 lbs	18 kg 40 lbs

Compact design, available in 8 models
Stainless steel structure
Thermostat 50-190 C
Stainless steel tank with oil level
Micro-switch for safety of operators
Heater would stop automatically once heater is lifted up
Stainless steel night cover with Bakelite handle, cool to touch
Wire mesh net to collect fried crumbs from food and protect heater
Power and heating indicators
Nickel coating basket
Heavy duty anti slippery foot
Electric box can be removed for easy cleaning
230 C hi-limiter ensures safety operation

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEF4L	4 L	2000 W / 220~240 V	251 x 379 x 311 mm 10 x 15 x 12 inch	420 x 240 x 350 mm 16.5 x 9 x 14 inch	5 kg 11 lbs	6 kg 13 lbs
PEF6L	6 L	2500 W / 220~240 V	309 x 410 x 286 mm 12 x 16 x 11 inch	460 x 340 x 330 mm 18 x 13 x 13 inch	6 kg 13 lbs	7 kg 15 lbs
PEF8L	8 L	3250 W / 220~240 V	309 x 410 x 336 mm 12 x 16 x 13 inch	460 x 340 x 370 mm 18 x 13 x 14.5 inch	6.5 kg 14 lbs	7.5 kg 17 lbs
PEF11L	11 L	3500 W / 220~240 V	322 x 438 x 336 mm 13 x 17 x 13 inch	480 x 370 x 370 mm 19 x 14.5 x 14.5 inch	7.5 kg 16.5 lbs	8.5 kg 19 lbs
PEF4L-2	2 x 4 L	2 x 2000 W / 220~240 V	479 x 379 x 311 mm 19 x 15 x 12 inch	500 x 450 x 350 mm 20 x 18 x 14 inch	9 kg 20 lbs	10.5 kg 23 lbs
PEF6L-2	2 x 6 L	2 x 2500 W / 220~240 V	548 x 410 x 286 mm 22 x 16 x 11 inch	620 x 460 x 330 mm 24 x 18 x 13 inch	11 kg 24 lbs	12 kg 26 lbs
PEF8L-2	2 x 8 L	2 x 3250 W / 220~240 V	548 x 410 x 336 mm 22 x 16 x 13 inch	620 x 460 x 370 mm 24 x 18 x 14.5 inch	12 kg 26 lbs	13 kg 29 lbs
PEF11L-2	2 x 11 L	2 x 3500 W / 220~240 V	666 x 438 x 336 mm 26 x 17 x 14 inch	700 x 460 x 370 mm 27.5 x 20 x 14.5 inch	14 kg 31 lbs	16 kg 35 lbs

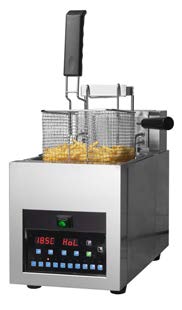

10 adjustable cooking programs for easy one-touch operation
Automatic basket lift-up system
Stainless steel removable tank, 8 liters capacity
3kW powerful stainless steel heating element
Temperature varies from 50~200 C
230 C hi-limit ensures safety operation
Digital display for accurate time and temperature settings
Heating indicator
Lift-up heating element for easy cleaning
Buzzer alerts when cooking is completed
Nickel coating basket
Heavy-duty anti-slip feet

Model	Description	Power	Capacity	Product (WxDxH)	Packing (WxDxH)	NW
PDF8S	Electric Auto Lift-up Fryer	230V / 3kW	8L	268 x 570 x 399 mm 10 x 22 x 16 inch	620 x 390 x 550 mm 24 x 15 x 22 inch	16 kg 35 lbs

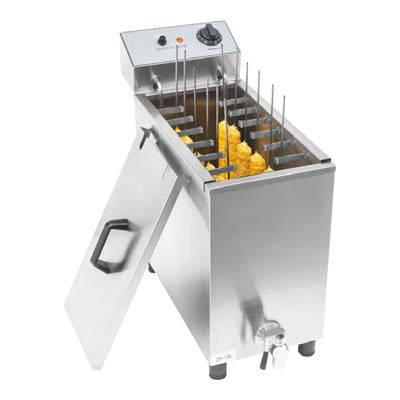

Stainless steel structure
Two 6-position skewer clips, cooks up to 12 corn dogs at once
Stainless steel heating element
Stainless steel oil tank
Temperature range up to 200 C
230 C high-limit for overheating protection
Stainless steel board collects crumbs and protects heating element
Heating indicator
Stainless steel night cover with cool-touch
Front-mounted oil drain valve
Anti-slip feet

Model	Description	Power	Temperature	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECDF16L	Corn Dog Fryer	120V / 1700W 230V / 3000W	Max. 200 C Max. 200 C	252 x 643 x 556 mm 10 x 25 x 22 inch 252 x 643 x 556 mm 10 x 25 x 22 inch	690 x 320 x 560 mm 27 x 25 x 20 inch 690 x 320 x 560 mm 27 x 25 x 20 inch	10 kg 22 lbs 10 kg 22 lbs	11 kg 24 lbs 11 kg 24 lbs

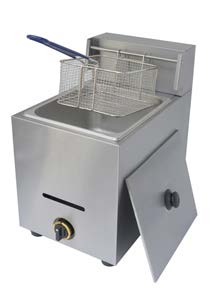

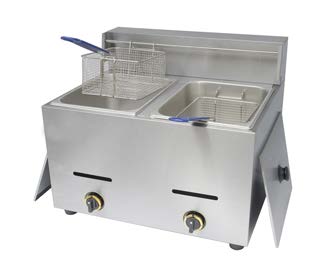

Cast aluminum burner
Stainless steel structure with surrounded insulation
5.5 Liters capacity tank
Stainless steel tank with oil level
Stainless steel night cover with Bakelite handle, cool to touch
Nickel coating basket
Heavy duty anti slippery foot
Observation hole in the front for visual of the burner fire
Gas valve with sparking electrode
Tank can be taken out for easy cleaning

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PGF71	5.5 L	18000Btu / 5.27kW	290 x 520 x 445 mm 11 x 20 x 18 inch	580 x 340 x 530 mm 23 x 13 x 21 inch	12 kg 26 lbs	13 kg 29 lbs
PGF72	2 x 5.5 L	36000Btu / 10.54 kW	580 x 520 x 445 mm 23 x 20 x 18 inch	620 x 560 x 520 mm 24 x 22 x 20 inch	22 kg 48 lbs	24 kg 53 lbs

Round tube heat exchanger immersed in oil for best efficiency
Stainless steel structure
8 Liters capacity per tank
Stainless steel tank with oil level
Thermostat range 160~220 C
Steel drain cock
Nickel coating basket
Heavy duty anti slippery foot
Observation hole in the front for visual of the burner fire
Gas valve with sparking electrode
Compact design, available in single tank and double tanks

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PGF71T	8 L	10239 Btu / 3 kW	315 x 610 x 532 mm 12 x 24 x 20.9 inch	390 x 670 x 550 mm 15 x 26 x 22 inch	14 kg 31 lbs	24 kg 53 lbs
PGF72T	2 x 8 L	20478 Btu / 6 kW	610 x 610 x 532 mm 24 x 24 x 21 inch	690 x 670 x 550 mm 27 x 26 x 22 inch	26 kg 57 lbs	28 kg 62 lbs

Stainless steel structure
Stainless steel heating elements
10 L capacity tank
Bakelite handle
Drain extension tube
Night cover included

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEFB	10 L	8.1 kW / 380 V	360 x 473 x 320 mm 14 x 19 x 13 inch	450 x 560 x 420 mm 18 x 22 x 17 inch	17 kg 37 lbs	19 kg 42 lbs
PEFBA	10 L	6 kW / 380 V	360 x 473 x 320 mm 14 x 19 x 13 inch	450 x 560 x 420 mm 18 x 22 x 17 inch	17 kg 37 lbs	19 kg 42 lbs

3250W powerful heater with 8Litres oil capacity
Stainless steel structure with drain tap Thermostat 50-190 C 230 C hi-limiter ensures safety operation Stainless steel tank with oil level
Micro-switch for safety of operators
Heater would stop automatically once heater is lifted up
Stainless steel night cover with Bakelite handle, cool to touch
Wire mesh net to collect fried crumbs from food and protect heater
Power and heating indicators
Nickel coating basket
Heavy duty anti slippery foot
Electric box can be removed for easy cleaning
Bottom cold zone to prevent food debris scorching

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEF8T	8 L	3250W / 220~240 V	290 x 550 x 410 mm 11 x 22 x 16 inch	570 x 360 x 480 mm 22 x 14 x 19 inch	10 kg 22 lbs	11 kg 24 lbs
PEF8T-2	2 x 8 L	2 x 3250W / 220~240 V	580 x 550 x 410mm 23 x 22 x 16 inch	660 x 570 x 480mm 26 x 22 x 19 inch	17.5kg 39 lbs	19.5kg 42 lbs

Stainless steel tanks, 10L capacity
Cold zone to prolong the shortening life
Power is up to 4.5kW, for prompt temperature recovery
Chrome plated basket with cool-to-touch handle
Heaters can be lifted for easy cleaning
Mechanical thermostat, adjustable from 30 to 190 C
230 C hi-limiter for safe operation
Removable S/S basket hanger at the back
3/4" drain valve with drain extension pipe
Bakelite handle for easy manipulation
S/S adjustable foot

Model	Description	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEF903	Electric fryer (single tank)	4.5 kW / 220-240V 50Hz	330 x 515 x 435 mm 13 x 20 x 17 inch	580 x 380 x 480 mm 23 x 15 x 19 inch	20 kg 44 lbs	22 kg 48 lbs
PEF904	Electric fryer (double tank)	4.5 kW + 4.5W / 220-240V 50Hz	660 x 515 x 435 mm 26 x 20 x 17 inch	710 x 580 x 480 mm 28 x 15 x 19 inch	28 kg 62 lbs	30 kg 66 lbs

18KW powerful heater with 28 Litres oil capacity each Robust structure with drain tap
Thermostat 50-190 C 230 C hi-limiter ensures safety operation
Stainless steel tank with oil level
Stainless steel night cover with Bakelite handle, cool to touch
Wire mesh net to collect fried crumbs from food and protect heater
Heater lifting mechanism to make cleaning easy and comfortable
Power and heating indicators
Nickel coating basket
Heavy duty steel foot
Timing relay with buzzer for reminder
Bottom cold zone to prevent food debris scorching

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEF28L	28 L	18kW / 380 V	400 x 800 x 1100 mm 16 x 32 x 43 inch	930 x 530 x 1200 mm 37 x 21 x 47 inch	56 kg 123 lbs	75 kg 165 lbs
PEF28L-2	2 x 28 L	2 x 18 kW / 380 V	800 x 800 x 1100 mm 32 x 42 x 43 inch	935 x 920 x 1135 mm 37 x 36 x 45 inch	101 kg 222 lbs	118 kg 260 lbs

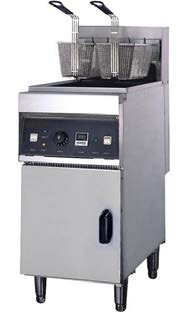

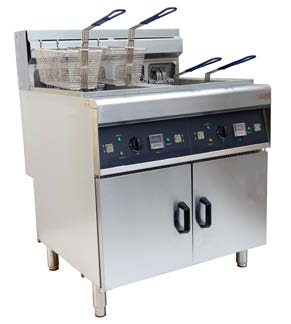

18KW powerful heater with 28Litres oil capacity each
PCB control with programming function
Preset melting function at 82 C Robust structure with drain tap Temperature range is 50-190 C Precise timing setting 230 C hi-limit ensures safety operation
Stainless steel tank with oil level
Stainless steel night cover with Bakelite handle, cool to touch
Wire mesh net to collect fried crumbs from food and protect heater
Heater lifting mechanism to make cleaning easy and comfortable
Power and heating indicators
Nickel coating basket
Heavy duty steel foot
Bottom cold zone to prevent food debris scorching

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEF28LD	28 L	18 kW / 380V	400 x 800 x 1100 mm 16 x 32 x 43 inch	930 x 530 x 1200 mm 37 x 21 x 47 inch	56 kg 123 lbs	75 kg 165 lbs
PEF28LD-2	2 x 2 8 L	2 x 18 kW / 380V	800 x 800 x 1100 mm 32 x 32 x 43 inch	935 x 920 x 1135 mm 37 x 36 x 45 inch	101 kg 222 lbs	118 kg 260 lbs

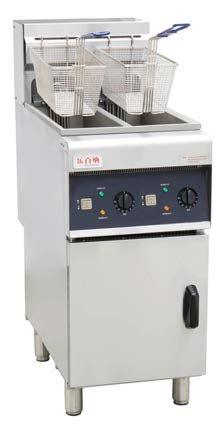

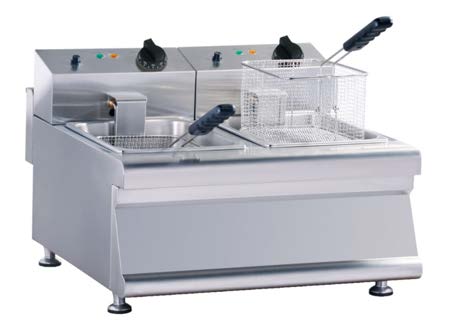

6KW powerful heater with 10Litres oil capacity each
Split tank with separate control system
Robust structure with drain tap Thermostat 50-190 C 230 C hi-limiter ensures safety operation Stainless steel tank with oil level Stainless steel night cover with Bakelite handle, cool to touch
Wire mesh net to collect fried crumbs from food and protect heater
Heater lifting mechanism to make cleaning easy and comfortable
Power and heating indicators
Nickel coating basket
Heavy duty steel foot
Bottom cold zone to prevent food debris scorching

Model	Capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEF10L-2	2 x 10 L	6 + 6 kW / 380 V	400 x 800 x 1100 mm 16 x 32 x 43 inch	930 x 530 x 1200 mm 37 x 21 x 47 inch	56 kg 123 lbs	68 kg 150 lbs

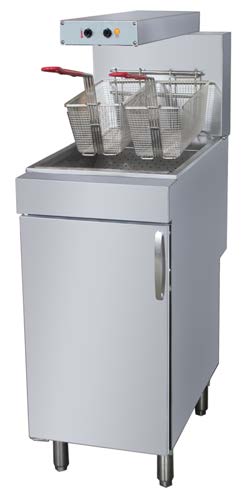

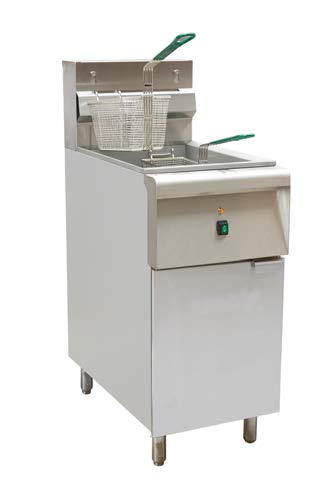

Stainless steel frying pot, 40 pounds capacity
Stainless steel front and galvanized sides
ON/off power switch
12kw flat heating elements for best heat transfer
Deep cold zone with forward sloping bottom
1 inch drainage valve
Oil draining extension
Cool to touch Bakelite door handle
Two baskets

Model	Power	Volts / Hz	Capacity	Product (WxDxH)	Package (WxDxH)	NW	GW
PEOV20	11.8kW	380V / 3N	20L / 40lbs	400 x 690 x 1120 mm 16 x 27 x 44 inch	920 x 520 x 1180 mm 36 x 20 x 46.5 inch	56 kg 123 lbs	68 kg 150 lbs

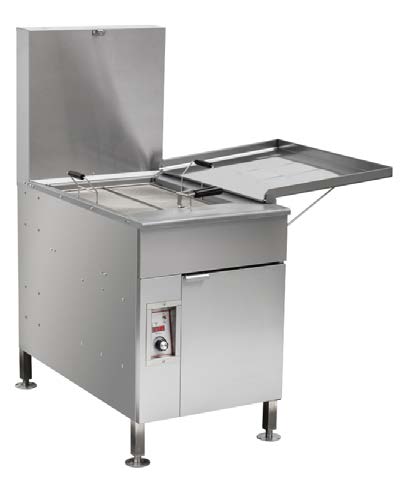

Stainless steel construction
Perfect for frying donuts, cakes, and other pastries
Stainless steel heating element
Thermostat 35 ~ 204 C (95 ~ 399 F)
Digital display panel for precise temperature control
Wire mesh frying screens with Bakelite handles
Flat-bottom oil tank prevent overlapping donuts
Maximized frying capacity
Power and heating indicators
Hi-limiter ensures safety operation
Drain tray/cover
Oil drain valve
Strong load-bearing bolt-down legs

Model	Description	Power	Tank Size (WxDxH)	Product (WxDxH)	Packing (WxDxH)
PEDF18P	Electric Donut Fryer	10 kW	457 x 610 x 216 mm 18 x 24 x 8.5 inch	610 x 1016 x 1449 mm 24 x 40 x 57 inch	1180 x 680 x 1050 mm 46 x 27 x 41 inch
PEDF24P	Electric Donut Fryer	15 kW	610 x 610 x 216 mm 24 x 24 x 8.5 inch	749 x 1016 x 1449 mm 29.5 x 40 x 57 inch	1180 x 830 x 1050 mm 46 x 33 x 41 inch

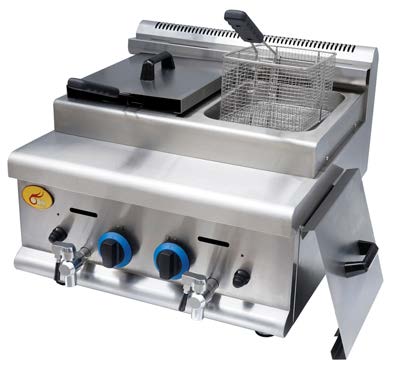

All stainless steel structure
U shape burner
8 liters capacity per tank
Two separate cooking zones
Standby pilot for instant start of main burner
Gas control valve with solenoid inside for safety operation
Cool to touch fiberglass Nylon knobs
Drain cock for oil tank
Easy conversion between different types of gases
Piezo ignition for easy start of flame
Observation holes for the main flame status
Stainless steel legs

Model	Tank	Capacity / tank	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTZL2R	2	8 L	38400 Btu / 11.2 kW	600 x 612 x 470 mm 24 x 24 x 19 inch	720 x 720 x 600 mm 28 x 28 x 24 inch	32 kg 70 lbs	47 kg 104 lbs

All stainless steel structure
Stainless steel heater with insulation outside
8 liters capacity per tank
Thermostat control from 30~190 C
Power and heating indicators
230 C hi limit for safety of oil
Cool to touch fiberglass Nylon knobs
Bakelite handle of frying basket
Two separate cooking zones
Micro switch
Stainless steel legs

Model	Capacity	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTZL2	8 L + 8 L	30 - 190 C	3.25 kW x 2 / 230V	600 x 600 x 430 mm 24 x 24 x 17 inch	720 x 720 x 540 mm 28 x 28 x 21 inch	22 kg 48 lbs	31 kg 68 lbs

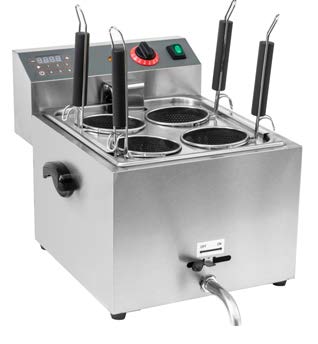

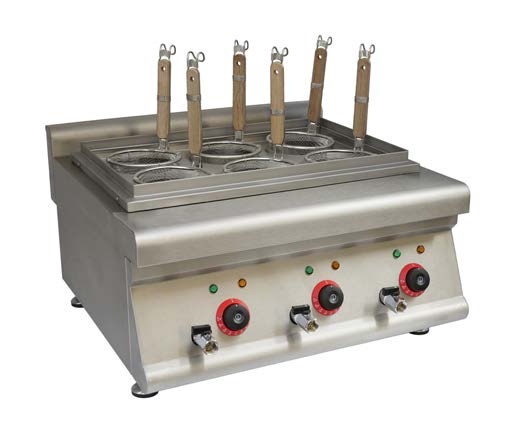

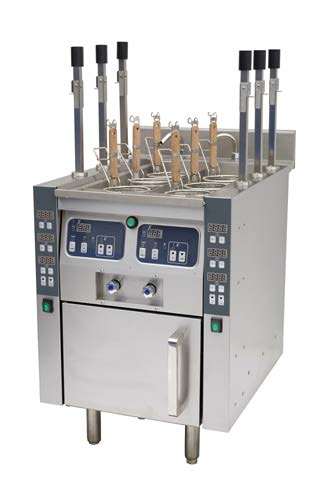

PASTA & NOODLE COOKERS

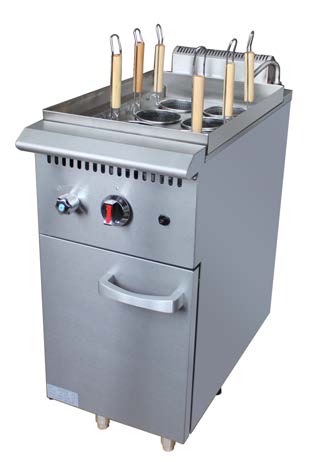

Electric and gas pasta boilers and noodle boilers for fast, split-tank cooking.

Stainless steel tank, 10 liters capacity
Stainless steel housing
On/off power switch
3.25 kW heating elements
Four baskets
Stainless steel drainage valve
Water draining extension
Cool to touch bakelite handle
6 pre-set timing programs

Model	Power	Capacity	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEBP	3.25 kW / 230V 50Hz	10 L	407 x 474 x 370 mm 16 x 19 x 14.5 inch	450 x 560 x 420 mm 18 x 22 x 17 inch	14 kg 31 lbs	15 kg 33 lbs

Stainless steel structure
Stainless steel heating elements
Auto lifting mechanism
Split tank
Timing function to cook food
PCB control panel, easy to operate
Steel foot

Model	Power	Product (WxDxH)	NW	GW
PENB6	18 kW / 380V	570 x 770 x 880 mm 22 x 30 x 35 inch	75 kg 165 lbs	100 kg 220 lbs

24L capacity tank, SUS316
Flame failure safety control valve
Two powerful burners
Electrode sparkler
Foam drainage in the front
Stainless steel basket with Bakelite handle
Stainless steel adjustable leg

Model	Power	Gas Types	Product (WxDxH)	Packing (WxDxH)	NW	GW
PGNB16	9.6 kW	NG / LP	403 x 773 x 1070 mm 16 x 30 x 42 inch	850 x 510 x 1120 mm 33 x 20 x 44 inch	60 kg 132 lbs	73 kg 161 lbs

All stainless steel structure
Stainless steel heater immersed in water for better efficiency
6 liters capacity per tank
Three separate tanks
Thermostat control from 30~100 C
Power and heating indicators
Drain cock for each tank
Cool to touch fiberglass Nylon knobs
Two baskets for each tank
Stainless steel legs

Model	Capacity	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTZM3	6 L + 6 L + 6 L	30 - 100 C	2 kW x 3 / 230 V	600 x 600 x 350 mm 24 x 24 x 14 inch	720 x 720 x 480 mm 28 x 28 x 19 inch	25 kg 55 lbs	29 kg 64 lbs

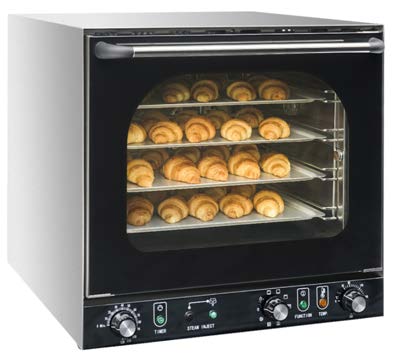

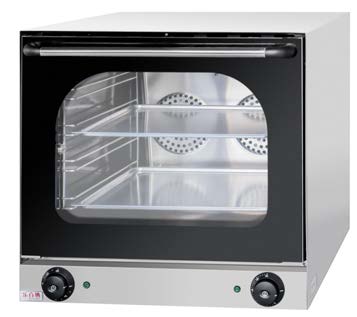

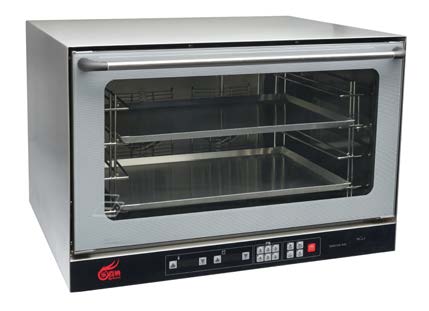

CONVECTION OVENS & STEAMERS

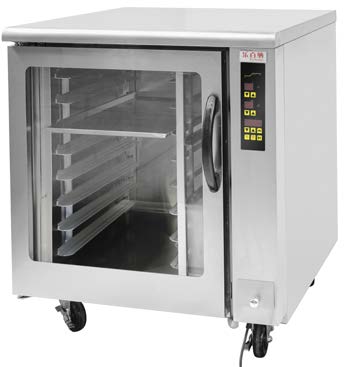

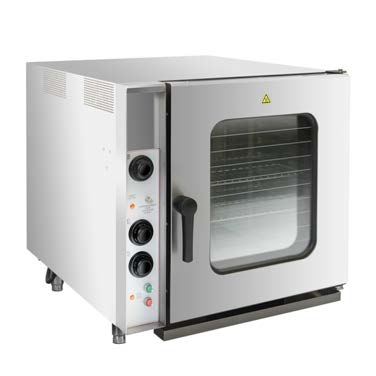

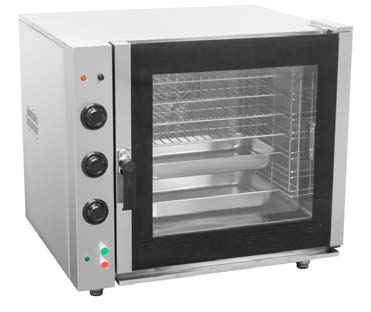

Convection ovens, proofers and boilerless combi steamers for even, reliable baking and holding.

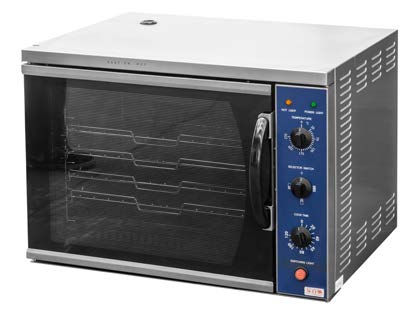

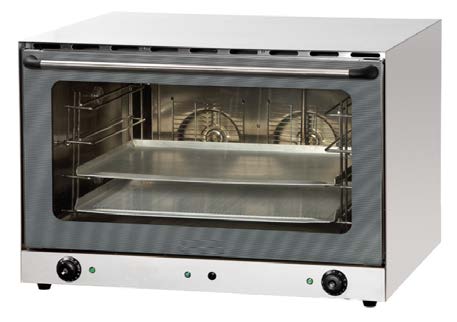

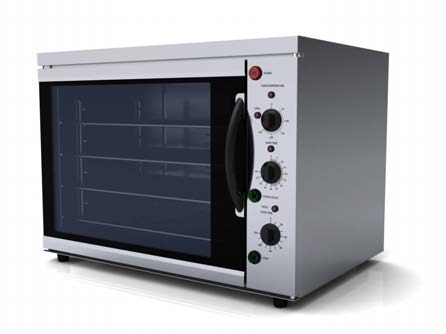

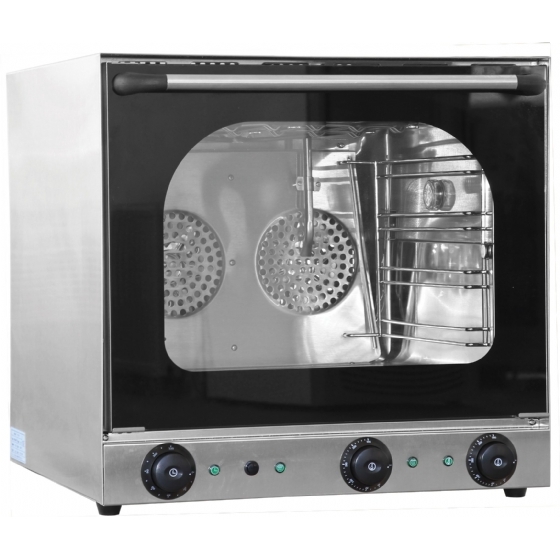

62L capacity cavity 460×375×360 mm
Stainless steel structure
Thermostat 50-300 C
360 C hi-limit ensures safety operation
Stainless steel cavity or ceramic coating cavity
120 minutes timer with bell
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Timing and heating indicators
Chamber light for better view of cooking process
Nickel coating pan support
Four aluminum baking trays 325×450mm
Optional wiring grid 325×450mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch
Steaming function is available for PECO2A

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO1AE	Ceramic coating	Nil	2.67 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs
PECO1A	Stainless steel	Nil	2.67 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 23 x 21 x 22 inch	38 kg 84 lbs	41.5 kg 91 lbs
PECO2A	Stainless steel	Yes	2.67 kW / 220 ~ 240V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs

62L capacity cavity 460×375×360 mm
Stainless steel structure
Thermostat 50-300°C with heating indicator
360°C hi-limit ensures safety operation
Stainless steel cavity or ceramic coating cavity
Digital control timer with 6 memorized menus for precise control
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Chamber light for better view of cooking process
Nickel coating pan support
Four aluminum baking trays 325×450mm
Optional wiring grid 325×450mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch
Steaming function is available for PECO2A

Model	Description	Chamber	Power	Product (WxDxH)	Packing (WxDxH)	NW
PECO1AE-DT6	Electric Convection Oven	Ceramic Coating	2.67 kW / 220 ~ 240 V	595 x 557 x 584 mm 23 x 22 x 23 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs

62L capacity cavity 460×375×360 mm
Stainless steel structure
Thermostat 50-300 C
360 C hi-limiter ensures safety operation
Stainless steel cavity or ceramic coating cavity
120 minutes timer with bell
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Timing and heating indicators
Chamber light for better view of cooking process
Nickel coating pan support
Four wiring grid 325×450mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch

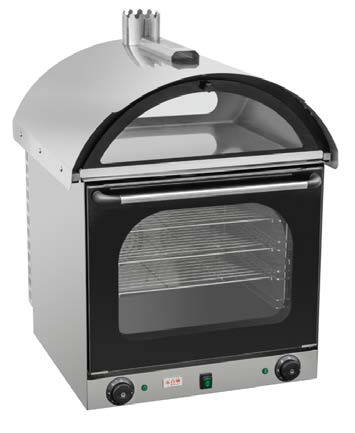

Hourly cooking capacity is 60pcs of potatoes
Oval-shaped top holding space

Model	Chamber	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO1AE-TD	Ceramic coating	2.87 kW / 220 ~ 240 V	652 x 640 x 895 mm 26 x 25 x 35 inch	800 x 790 x 1050 mm 32 x 31 x 41 inch	52 kg 115 lbs	68 kg 150 lbs
PECO1A-TD	Stainless steel	2.87 kW / 220 ~ 240 V	652 x 640 x 895 mm 26 x 25 x 35 inch	800 x 780 x 1060 mm 32 x 30 x 42 inch	52 kg 115 lbs	68 kg 150 lbs

62L capacity cavity 460×375×360 mm
Stainless steel structure
Thermostat 50-300 C
360 C hi-limiter ensures safety operation
Stainless steel cavity
120 minutes timer with bell
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Timing and heating indicators
Chamber light for better view of cooking process
Nickel coating pan support
Four aluminum baking trays 325×450mm
Optional wiring grid 325×450mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch
Manual steaming function is available for PECO4A
Grilling is perfect for finish of the cooked products
9- Position EGO selective switch EGO
Top inner(1.7kW), Top out(0.7kW),
Bottom(1.7kW), Back(1.26kWx2)

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO4A-B	Stainless steel	Yes	2.67 kW /220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	50.5 kg 111 lbs	53 kg 117 lbs

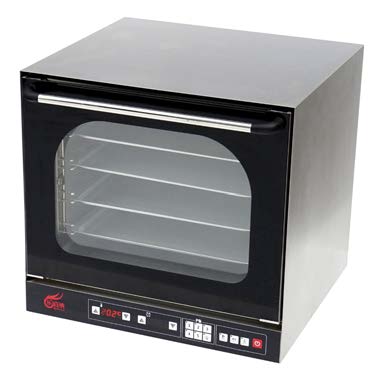

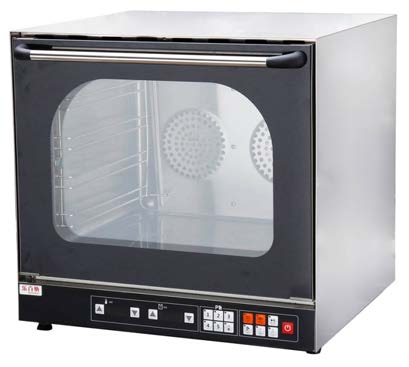

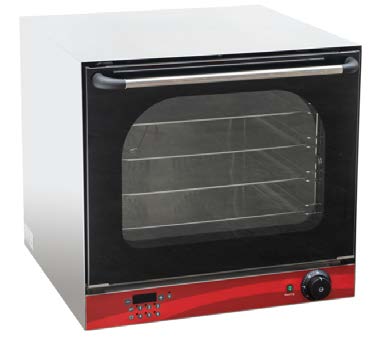

62L capacity cavity 460×375×360 mm
Stainless steel structure
PCB control with programming function for 5 menus
Easy conversion from program to manual(5-stages cooking)
Temperature range is 50-260 C
Cook & Hold, holding temperature at 65 C
360 C hi-limiter ensures safety operation
Stainless steel cavity or ceramic coating cavity
Precise timing function to seconds ,up to 99 minutes 59 seconds
Chamber light for better view of cooking process
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Trip switch to stop working when door is opened
Nickel coating pan support
Four aluminum baking trays 325×450mm
Optional wiring grid 325×450mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch
Steaming function is available for PECO4AD

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO3AD	Stainless steel	Nil	2.67 kW / 2.15 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs
PECO4AD	Stainless steel	Yes	2.67 kW / 2.15 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs

62L capacity cavity 460×375×360 mm
Stainless steel structure
PCB control with programming function for 5 menus
Easy conversion from program to manual
(5-stages cooking)
Temperature range is 50-260 C
Cook & Hold, holding temperature at 65 C
360 C hi-limiter ensures safety operation
Stainless steel cavity or ceramic coating cavity
Precise timing function to seconds , up to 99 minutes 59 seconds
Chamber light for better view of cooking process
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Trip switch to stop working when door is opened
Nickel coating pan support
Four aluminum baking trays 325×450mm
Optional wiring grid 325×450mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch
Steaming function is available for PECO2AD

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing(WxDxH)	NW	GW
PECO1AED	Ceramic coating	Nil	2.67 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs
PECO1AD	Stainless steel	Nil	2.67 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs
PECO2AD	Stainless steel	Yes	2.67 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs

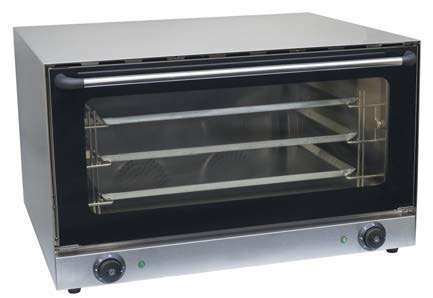

116L capacity cavity 700×460×360 mm
Stainless steel structure
PCB control with programming function for 5 menus
Easy conversion from program to manual(5-stages cooking)
Temperature range is 50-260 C
Cook & Hold, holding temperature at 65 C
360 C hi-limiter ensures safety operation
Stainless steel cavity or ceramic coating cavity
Precise timing function to seconds ,up to 99 minutes 59 seconds
Chamber light for better view of cooking process
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Auto-reverse, 90s(clockwise) + 13s(stop) + 90s(anticlockwise)
Stainless steel baffle to generate heat more evenly
Trip switch to stop working when door is opened
Nickel coating pan support
Four aluminum baking trays 600×400mm
Optional wiring grid 600×400mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO8AD	Ceramic coating	Yes	6.4 kW / 220 ~ 240 V / 380 V 2N	834 x 672 x 572 mm 33 x 27 x 23 inch	834 x 672 x 572 mm 33 x 27 x 23 inch	73 kg 161 lbs	75 kg 165 lbs
PECO8ADS	Stainless steel	Yes	6.4 kW / 220 ~ 240 V / 380 V 2N	834 x 672 x 572 mm 33 x 27 x 23 inch	834 x 672 x 572 mm 33 x 27 x 23 inch	73 kg 161 lbs	75 kg 165 lbs

62L capacity cavity 460×375×360 mm
Stainless steel structure
Thermostat 50-300 C
360 C hi-limiter ensures safety operation
Stainless steel cavity
120 minutes timer with bell
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Timing and heating indicators
Chamber light for better view of cooking process
Nickel coating pan support
Four aluminum baking trays 325×450mm
Optional wiring grid 325×450mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch
Manual steaming function is available for PECO4A
Grilling is perfect for finish of the cooked products

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO3A	Stainless steel	Nil	2.67 kW / 2.15 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs
PECO4A	Stainless steel	Yes	2.67 kW / 2.15 kW / 220 ~ 240 V	595 x 530 x 570 mm 23 x 21 x 22 inch	660 x 640 x 640 mm 26 x 25 x 25 inch	38 kg 84 lbs	41.5 kg 91 lbs

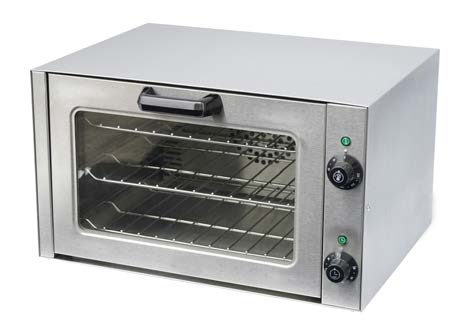

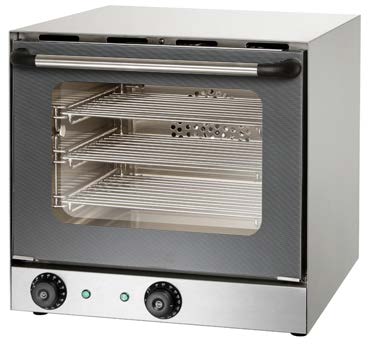

28L capacity cavity 350×290×275 mm
Stainless steel structure
Thermostat 50-300 C
360 C hi-limiter ensures safety operation
Stainless steel chamber
120 minutes timer with bell
Steel handle fixed by Bakelite base
Round heater plus high speed motor to stir heat evenly
Stainless steel baffle to generate heat more evenly
Timing and heating indicators
Chamber light for better view of cooking process
Nickel coating pan support
Three wiring grid 325×265mm, GN1/2 size
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO1A-BQ	Stainless steel	Nil	2.67 kW / 220 ~ 240 V	460 x 556 x 460 mm 18 x 22 x 18 inch	600 x 500 x 500 mm 24 x 23 x 23 inch	27 kg 59 lbs	29 kg 64 lbs

116L capacity cavity 700×460×360 mm
Stainless steel structure
Temperature range is 80-300 C
120 minutes timer with bell
360 C hi-limiter ensures safety operation
Stainless steel cavity or ceramic coating cavity
Manual spraying switch for direct steam
Chamber light for better view of cooking process
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Trip switch to stop working when door is opened
Nickel coating pan support
Four aluminum baking trays 600×400mm
Optional wiring grid 600×400mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch
Steaming function

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO8A	Ceramic coating	Yes	6.4 kW / 220 ~ 240 V / 380 V 2N	834 x 672 x 572 mm 33 x 27 x 23 inch	940 x 840 x 660 mm 37 x 33 x 26 inch	73 kg 161 lbs	75 kg 165 lbs
PECO8AS	Stainless steel	Yes	6.4 kW / 220 ~ 240 V / 38 0V 2N	834 x 672 x 572 mm 33 x 27 x 23 inch	940 x 840 x 660 mm 37 x 33 x 26 inch	73 kg 161 lbs	75 kg 165 lbs

Stainless steel structure
Digital control with temperature and humidity setting
Bakelite handle
Temperature control varies from 30 ~ 60 C
8 trays capacity
Can fit 400 x 600 baking trays
Double visual toughened glass for better energy efficiency
Insulation cavity
PCB for more precise setting of humidity and temperature
Designed for in-stone bakeries or small workshops
Perfect match to go with our convection oven PECO8A
Fluorescent lamp for best view of bread
Humidity setting can be up to 99%
Built-in water tank with water level in the front
Water can be filled in the front drawer

Model	Cavity Size	Tray Size	Capacity	Power	Volts	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEP8A-XFD	840 x 760 x 900 mm 33 x 30 x 35 inch	400 x 600 mm 15.5 x 23.5 inch	8	450W	230~240V	594 x 620 x 695 mm 23 x 24 x 27 inch	950 x 880 x 1040 mm 37 x 35 x 41 inch	73 kg 161 lbs	94 kg 207 lbs

93L capacity cavity 700×460×288 mm
Stainless steel structure
Thermostat 50-300 C
360 C hi-limit ensures safety operation
Stainless steel cavity
120 minutes timer with bell
Steel handle fixed by Bakelite base
Dual round heaters plus two high speed motors
Stainless steel baffle to generate heat more evenly
Timing and heating indicators
Chamber light for better view of cooking process
Nickel coating pan support
Three aluminum baking trays 400×600mm
Optional wiring grid 400×600mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm
Double toughened visual glass for better view and to keep cool to touch

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO8A-3	Stainless steel	Nil	3.5 kW / 220 ~ 240 V	834 x 672 x 500 mm 33 x 27 x 20 inch	940 x 840 x 580 mm 37 x 33 x 23 inch	55 kg 121 lbs	58 kg 125 lbs

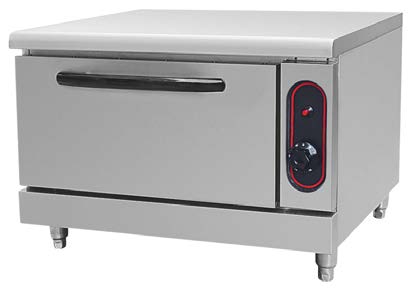

Stainless steel structure
Stainless steel heating elements
Enameled cavity for easy cleaning
4 standard GN1/1 rack
Bakelite handle
Cook & Hold function
Water proof switch

Model	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO6A	2.85 kW / 230 V	796 x 670 x 580 mm 31 x 26 x 23 inch	890 x 750 x 660 mm 35 x 30 x 26 inch	44 kg 97 lbs	52 kg 114 lbs

Stainless steel structure
Stainless steel heating elements
Enameled cavity for easy cleaning
4 standard GN1/1 rack
Bakelite handle
Selection switch for top and bottom heaters
Water proof switch

Model	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO6AJ	4 kW / 230 V	796 x 670 x 580 mm 31 x 26 x 23 inch	890 x 750 x 660 mm 35 x 30 x 26 inch	44 kg 97 lbs	52 kg 114 lbs

Compact 30L capacity cavity 405×255×300 mm
Stainless steel structure
Thermostat 50-300 C
Stainless steel chamber
120 minutes timer with bell
Cool to touch Bakelite handle
Round heater plus high speed motor to stir heat evenly
Stainless steel baffle to generate heat more evenly
Timing and heating indicators
Visual toughened glass for better view of cooking process
Stainless steel grid support
One wiring grid 400×290mm
Oil collector 419×299mm
Good insulation at 5 sides
Rounded corners in cavity for easy cleaning
Door latch opens at 90°for easy access to the cavity
Level distance is 75mm

Model	Chamber	Steaming	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECOB	Stainless steel	Nil	2.5 kW / 220 ~ 240 V	527 x 450 x 315 mm 21 x 18 x 12 inch	600 x 540 x 400 mm 24 x 21 x 16 inch	19 kg 42 lbs	21 kg 46 lbs

Robust structure
Stainless steel heating elements
Enameled cavity for easy cleaning
Can fit full sheet size baking tray
High quality spring steel seal
Double speeds motor
Heavy duty fan blade

Model	No. of Tray	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PECO100	11	12.4 kW / 380 V	967 x 1099 x 1384 mm 38 x 43 x 55 inch	1180 x 1070 x 1070 mm 46 x 42 x 42 inch	180 kg 396 lbs	218 kg 480 lbs

80L capacity cavity 500×530×300mm
Stainless steel structure
Thermostat 100-320 C
Stainless steel cavity
Piezo ignitor
Standby pilot for main burner
Flame failure with thermal coupling
Cool to touch Bakelite handle
Stainless steel burner to generate heat more evenly
Stainless steel heavy duty insulated door
Heavy duty hinge for commercial use
Nickel coating wiring grid
Good insulation at 4 sides
Door latch opens at 90°for easy access to the cavity
Level distance is 70mm
3 levels design

Model	Chamber	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PSO800	Stainless steel	100 - 320	°C 24000 Btu / 7kW	800 x 900 x 580 mm 32 x 35 x 23 inch	920 x 920 x 670 mm 36 x 36 x 26 inch	71 kg 156 lbs	74 kg 163 lbs

All stainless steel structure
Stainless steel heating elements
Heavy duty stainless steel cavity
Standard GN1/1 rack
High quality silicon seal
Boilerless to generate steam, free from water scale
Heavy duty fan blade

Model	No. of Tray	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEBCS06	6	12 kW / 380 V	867 x 918 x 750 mm 34 x 36 x 30 inch	1100 x 980 x 960 mm 43 x 39 x 38 inch	152 kg 334 lbs	182 kg 400 lbs
PEBCS10	10	18 kW / 380 V	867 x 918 x 930 mm 34 x 36 x 37 inch	1100 x 970 x 1130 mm 434 x 38 x 45 inch	180 kg 396 lbs	218 kg 480 lbs

Stainless steel structure
Stainless steel heating elements
Heavy duty stainless steel cavity
Standard GN1/1 rack
High quality silicon seal
Boilerless to generate steam, free from water scale
Heavy duty fan blade

Model	No. of Tray	Voltage	Power	Product (WxDxH)	Packing (WxDxH)
PEBCS711A	7	3N / 400V / 50Hz	8.4kW	931 x 930 x 868 mm 37 x 37 x 34 inch	970 x 980 x 860 mm 38 x 38.5 x 34 inch

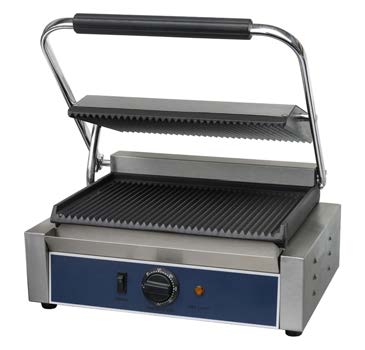

GRIDDLES & PANINI GRILLS

Flat-top griddles, panini presses and countertop grills for line cooking and sandwich stations.

Cast iron plate with ceramic coating to improve efficiency
Stainless steel structure
EGO thermostat, durable and robust
Temperature range 50-320 C
Hi-limiter ensures safety operation
Easy access to Reset pole
Rotating shaft suspension system
Stainless steel oil collector
Bakelite handle, cool to touch
Steel wire pipe to last longer
Easy access to back rotating shaft, easy to adjust tightness
Anti slippery rubber foot
Rock on/off switch with illuminator
Different plate type available

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PPGSA	Top grooved + bottom grooved	214 x 214 mm 8 x 8 inch	1800 W / 220 ~ 240 V	290 x 305 x 210 mm 11 x 12 x 8 inch	440 x 390 x 260 mm 17 x 15 x 10 inch	14 kg 31 lbs	16 kg 35 lbs
PPGSF	Top flat + bottom flat	214 x 214 mm 8 x 8 inch	1800 W / 220 ~ 240 V	290 x 305 x 210 mm 11 x 12 x 8 inch	440 x 390 x 260 mm 17 x 15 x 10 inch	14 kg 31 lbs	16 kg 35 lbs
PPGSC	Top grooved + bottom flat	214 x 214 mm 8 x 8 inch	1800 W / 220 ~ 240 V	290 x 305 x 210 mm 11 x 12 x 8 inch	440 x 390 x 260 mm 17 x 15 x 10 inch	14 kg 31 lbs	16 kg 35 lbs
PPGMA	Top grooved + bottom grooved	338 x 220 mm 13 x 9 inch	2200 W / 220 ~ 240 V	410 x 305 x 210 mm 16 x 12 x 8 inch	530 x 440 x 260 mm 21 x 17 x 10 inch	17.5 kg 39 lbs	19 kg 42 lbs
PPGMB	Top flat + bottom flat	338 x 220 mm 13 x 9 inch	2200 W / 220 ~ 240 V	410 x 305 x 210 mm 16 x 12 x 8 inch	530 x 440 x 260 mm 21 x 17 x 10 inch	17.5 kg 39 lbs	19 kg 42 lbs
PPGMC	Top grooved + bottom flat	338 x 220 mm 13 x 9 inch	2200 W / 220 ~ 240 V	410 x 305 x 210 mm 16 x 12 x 8 inch	530 x 440 x 260 mm 21 x 17 x 10 inch	17.5 kg 39 lbs	19 kg 42 lbs

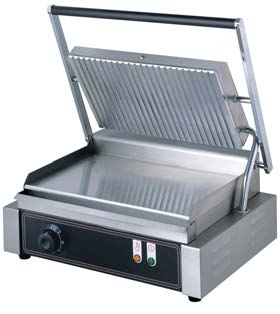

Mild steel plate with hard chrome coating to improve efficiency
Stainless steel structure
Top grooved, bottom flat plate
Temperature range 50-300 C
Rotating shaft suspension system
Stainless steel oil collector
Bakelite handle, cool to touch
Steel wire pipe to last longer
Easy access to back rotating shaft, easy to adjust tightness
Anti slippery rubber foot
Heating and power indicator
Splash guard on the bottom plate to prevent food spillage

Model	Plate type	Cooking plate size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PPG815	Top grooved + bottom flat	344 x 206 x 8 mm (upper) 13.5 x 8 x 0.3 inch 375 x 242 x 8 mm (lower) 14.8 x 9.5 x 0.3 inch	2500 W / 220 ~ 240 V	450 x 370 x 220 mm 18 x 15 x 9 inch	500 x 410 x 240 mm 20 x 16 x 9 inch	20 kg 44 lbs	22 kg 49 lbs

Cast iron plate with ceramic coating to improve efficiency
Stainless steel structure
EGO thermostat, durable and robust
Temperature range 50-320 C
Hi-limiter ensures safety operation
Easy access to Reset pole
Rotating shaft suspension system
Stainless steel oil collector
Bakelite handle, cool to touch
Steel wire pipe to last longer
Easy access to back rotating shaft, easy to adjust tightness
Anti slippery rubber foot
Rock on/off switch with illuminator
Different plate type available
Two cooking zones controlled separately

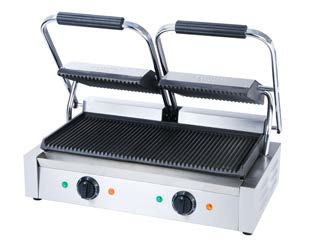

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PPG2SA	Top grooved + bottom grooved	475 x 230 mm 19 x 9 inch	2 x 1800 W / 220 ~ 240 V	570 x 305 x 210 mm 22 x 12 x 8 inch	670 x 440 x 260 mm 26 x 17 x 10 inch	28 kg 62 lbs	24.5 kg 54 lbs
PPG2SF	Top flat + bottom flat	475 x 230 mm 19 x 9 inch	2 x 1800 W / 220 ~ 240 V	570 x 305 x 210 mm 22x 12 x 8 inch	670 x 440 x 260 mm 26 x 17 x 10 inch	28 kg 62 lbs	24.5 kg 54 lbs
PPG2SC	Top grooved + bottom flat	475 x 230 mm 19 x 9 inch	2 x 1800 W / 220 ~ 240 V	570 x 305 x 210 mm 22 x 12 x 8 inch	670 x 440 x 260 mm 26 x 17 x 10 inch	28 kg 62 lbs	24.5 kg 54 lbs
PPG2MA	Top grooved + bottom grooved	338 x 220 mm 13 x 9 inch	2 x 2200 W / 220 ~ 240 V	840 x 305 x 210 mm 33 x 12 x 8 inch	940 x 440 x 260 mm 37 x 17 x 10 inch	33 kg 73 lbs	35 kg 77 lbs
PPG2MB	Top flat + bottom flat	338 x 220 mm 13 x 9 inch	2 x 2200 W / 220 ~ 240 V	840 x 305 x 210 mm 33 x 12 x 8 inch	940 x 440 x 260 mm 37 x 17 x 10 inch	33 kg 73 lbs	35 kg 77 lbs
PPG2MC	Top grooved + bottom flat	338 x 220 mm 13 x 9 inch	2 x 2200 W / 220 ~ 240 V	840 x 305 x 210 mm 33 x 12 x 8 inch	940 x 440 x 260 mm 37 x 17 x 10 inch	33 kg 73 lbs	35 kg 77 lbs

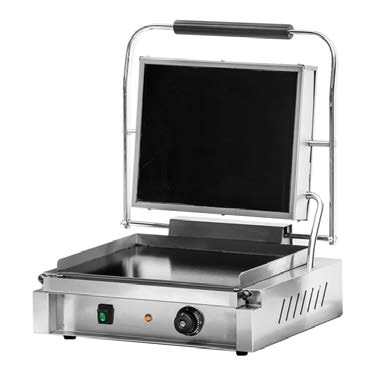

Glass-ceramic cooking plate
Infrared heating element, instant heat-up
EGO thermostat control, 50 ~ 300 C(MAX)
360 C hi-limit for safe operation
Rotating shaft suspension system
Stainless steel oil collector
Bakelite handle, cool to touch
Steel wire pipe to last longer
ON/OFF switch and orange heating indicator
Easy access to back rotating shaft, easy to adjust tightness
Anti-slip rubber feet

Model	Description	Cooking Plate Size	Power	Product (WxDxH)	Packing (WxDxH)
PCPG03	Glass-Ceramic Panini Grill	370 x 300 x 4mm (upper) 14.5 x 12 x 0.15 inch 401 x 300 x 4mm (lower) 16 x 12 x 0.15 inch	220-230 V / 1.83 kW - 2kW	486x 466 x 196 mm 19 x 18 x 8 inch	566 x 540 x 310 mm 22 x 21 x 12 inch

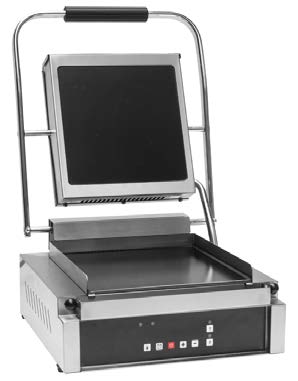

Glass-ceramic cooking plate
Infrared heating element, instant heat-up
Digital control for precise time and temperature settings
Temperature range 50-300 C
Two adjustable pre-set cooking times improve efficiency
360 C hi-limit for safe operation
Rotating shaft suspension system
Stainless steel oil collector
Bakelite handle, cool to touch
Steel wire pipe to last longer
Heating indicator
Easy access to back rotating shaft, easy to adjust tightness
Anti-slip rubber feet

Model	Description	Cooking Plate Size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCPG04D	Glass-Ceramic Panini Grill	245 x 245 x 4mm (upper) 10 x 10 x 0.15 inch 275 x 285 x 4mm (lower) 11 x 11 x 0.15 inch	220-230 V / 1.65 kW - 1.8kW	370 x 393 x 196 mm 14.5 x 15 x 8 inch	430 x 550 x 310 mm 17 x 22 x 12 inch	13.5 kg 30 lbs	15 kg 33 lbs

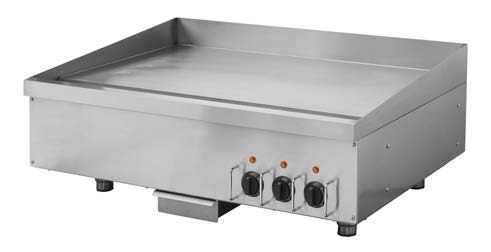

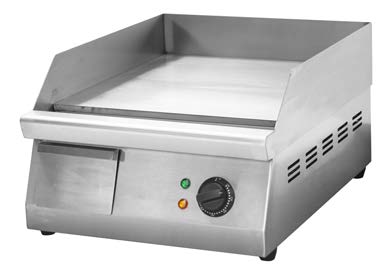

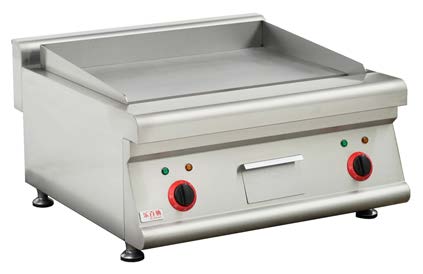

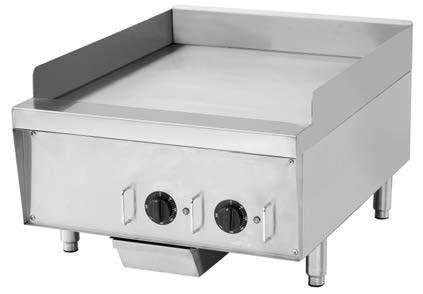

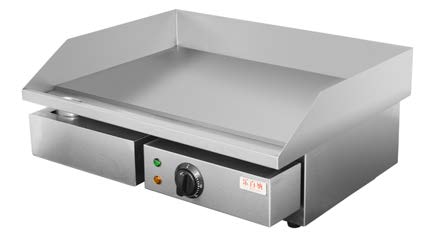

Polished mild steel plate, 10mm in thickness
Splash guard to prevent food spillage
Stainless steel structure
Temperature range 50-300 C
Large stainless steel oil collector with handle
Bakelite knob, cool to touch
Large opening of front grease through
Stainless steel heating element
Anti slippery rubber foot
Heating and power indicator

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFT818	Flat	548 x 350 mm 22 x 14 inch	3000 W / 220 ~ 240 V	550 x 450 x 230 mm 22 x 18 x 9 inch	590 x 500 x 270 mm 23 x 20 x 11 inch	23 kg 51 lbs	25 kg 55 lbs
PFT820	Flat	728 x 400 mm 29 x 16 inch	4400 W / 220 ~ 240 V	730 x 500 x 230 mm 29 x 20 x 9 inch	850 x 610 x 320 mm 33 x 24 x 13 inch	34 kg 75 lbs	44 kg 96.8 lbs
PFT822	½ Flat + ½ grooved	728 x 400 mm 29 x 16 inch	4400 W / 220 ~ 240 V	730 x 500 x 230 mm 29 x 20 x 9 inch	850 x 610 x320 mm 33 x 24 x 13 inch	34 kg 75 lbs	42 kg 92.4 lbs

Polished mild steel plate, 12mm in thickness
Splash guard 2.0mm to prevent food spillage
Temperature range 50-300 C
Large stainless steel oil collector with handle
Bakelite knob, cool to touch
Large opening of front grease through
Stainless steel heating element
Anti slippery rubber foot
Heating and power indicator

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFT250	Flat	256 x 330 mm 10 x 13 inch	1500 W / 220 ~ 240 V	260 x 420 x 270 mm 10 x 17 x 11 inch	570 x 360 x 350 mm 26 x 14 x 14 inch	16.5 kg 26 lbs	22 kg 49 lbs
PGR400	Flat	400 x 396 mm 16 x 16 inch	3000 W / 220 ~ 240 V	400 x 500 x 270 mm 16 x 20 x 11 inch	620 x 510 x 330 mm 24 x 20 x 13 inch	27.5 kg 60 lbs	33.5 kg 74 lbs
PGR550	Flat	546 x 348 mm 22 x 14 inch	3000 W / 220 ~ 240 V	550 x 450 x 270 mm 22 x 18 x 11 inch	660 x 610 x 330 mm 26 x 24 x 13 inch	31 kg 68 lbs	37 kg 82 lbs
PGR610	Flat	606 x 400 mm 24 x 16 inch	6000 W / 220 ~ 240 V	610 x 500 x 270 mm 24 x 20 x 11 inch	720 x 640 x 330 mm 28 x 25 x 13 inch	40 kg 88 lbs	47 kg 104 lbs
PGR760	Flat	756 x 400 mm 30 x 16 inch	9000 W / 380 V, 3N	760 x 500 x 270 mm 30 x 20 x 11 inch	860 x 630 x 350 mm 34 x 25 x 14 inch	48 kg 106 lbs	56 kg 123 lbs

Polished mild steel plate, 10mm in thickness
Splash guard to prevent food spillage
Stainless steel structure
Stainless steel chimney
Manual controlled valve with sparkling electrode
Large stainless steel oil collector with handle
Bakelite knob, cool to touch
Large opening of front grease through
H shape burner for better distribution of heat
Anti slippery rubber foot
Observation hole for flame status

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFT718	Flat	548 x 350 mm 22 x 14 inch	36520 Btu / 10.7 kW	550 x 530 x 550 mm 22 x 21 x 22 inch	670 x 650 x 650 mm 26 x 26 x 26 inch	30 kg 66 lbs	41 kg 90 lbs
PFT720	Flat	548 x 400 mm 22 x 16 inch	39932 Btu / 11.7 kW	730 x 580 x 550 mm 29 x 21 x 22 inch	850 x 710 x 760 mm 33 x 28 x 30 inch	43 kg 95 lbs	55 kg 121 lbs

Polished mild steel plate, 20mm in thickness
Splash guard 2.0mm to prevent food spillage
Stainless steel structure
Temperature range 50-320℃
Large stainless steel oil collector
Bakelite knob, cool to touch
Protecting grid to protect thermostat knob
Large opening of front grease through
Stainless steel heating element
Stainless steel legs
Heating and power indicator
Available in 24”,36” and 48”

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEG24	Flat	605 x 490 mm 24 x 19 inch	8 kW / 380 V, 3N	609 x 616 x 406 mm 24 x 24 x 16 inch	750 x 730 x 470 mm 30 x 29 x 19 inch	72 kg 159 lbs	87 kg 192 lbs
PEG36	Flat	910 x 490 mm 36 x 19 inch	12 kW / 380 V, 3N	914 x 616 x 406 mm 36 x 24 x 16 inch	1020 x 740 x 470 mm 40 x 29 x 19 inch	105 kg 231 lbs	120 kg 265 lbs
PEG48	Flat	1212 x 490 mm 48 x 19 inch	16 kW / 380 V, 3N	1216 x 616 x 406 mm 48 x 24 x 16 inch	1340 x 730 x 560 mm 53 x 29 x 22 inch	138 kg 304 lbs	163 kg 359 lbs

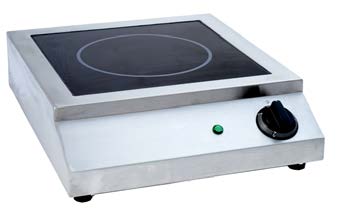

Stainless steel structure
Energy regulator to set power output as you want
EGO Infrared hotplate
Ceramic glass on top
Glass size 275x275mm
Heating size Ø 200mm
No need for pre-heating
Glow up time is reduced to 6~10 seconds
Anti-slippery rubber foot

Model	Glass size	Heating zone	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PHP1800	275 x 275 mm 11 x 11 inch	Dia. 200 mm Dia. 8 inch	1800 W / 230 V	350 x 420 x 110 mm 14 x 17 x 4 inch	475 x 400 x 175 mm 19 x 16 x 7 inch	4.8 kg 11 lbs	5.5 kg 12 lbs
PHP3600	500 x 275 mm 20 x 11 inch	Dia. 200 mm Dia. 8 inch	3600 W / 230 V	666 x 420 x 110 mm 26 x 17 x 4 inch	650 x 475 x 175 mm 26 x 19 x 7 inch	8 kg 18 lbs	9 kg 20 lbs

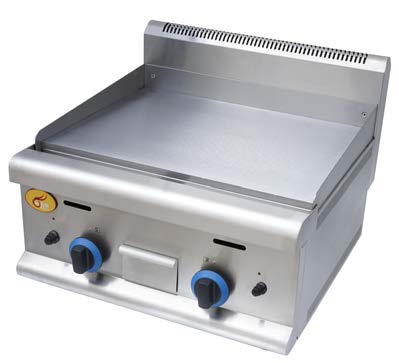

All stainless steel structure
Cast iron flat burner
16mm thickness griddle plate(590×434mm)
Two separate cooking zones
Standby pilot for instant start of main burner
Gas control valve with solenoid inside for safety operation
Cool to touch fiberglass Nylon knobs
Stainless steel splash guards at 3 sides
Easy conversion between different types of gases
Piezo ignition for easy start of flame
Observation holes for the main flame status
Stainless steel legs

Model	Burner	Cooking zone	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTFT21R	2	590 x 434 mm 23 x 17 inch	27400 Btu / 8kW	600 x 612 x 470 mm 24 x 24 x 19 inch	720 x 720 x 600 mm 28 x 28 x 24 inch	50 kg 110 lbs	70 kg 154 lbs

All stainless steel structure
Stainless steel heater with insulation outside
Thermostat control from 30~300 C
Power and heating indicators
Cool to touch fiberglass Nylon knobs
Stainless steel splash guards at 3 sides
Two separate cooking zones
Oil to be collected through channels in the front
Stainless steel legs

Model	Cooking zone	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTFT21	536 x 330 mm 21 x 13 inch	30 - 300 C	5000 W / 230 V	600 x 600 x 350 mm 24 x 24 x 14 inch	720 x 720 x 480 mm 28 x 28 x 19 inch	43 kg 95 lbs	57 kg 126 lbs

Stainless steel heating elements
To be controlled every 12"
3/4" thickness polished griddle plate
Adjustable heavy duty legs
Grease through channel in the front
Stainless steel oil collector in the bottom
Stainless steel splash guard at 3 sides
EGO thermostat

Model	Power	Cooking zone	Control	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCG24E	8 kW	610 x 610 mm 24 x 24 inch	2	940 x 740 x 560 mm 37 x 29 x 22 inch	710 x 965 x 560 mm 28 x 38 x 22 inch	92 kg 203 lbs	115 kg 254 lbs
PCG36E	12 kW	910 x 610 mm 36 x 24 inch	3	1000 x 940 x 560 mm 39 x 37 x 22 inch	1070 x 965 x 560 mm 42 x 38 x 22 inch	130 kg 285 lbs	155 kg 340 lbs
PCG48E	16 kW	1220 x 610 mm 48 x 24 inch	4	1300 x 940 x 560 mm 51 x 37 x 22 inch	1350 x 965 x 580 mm 53 x 38 x 23 inch	170 kg 373 lbs	205 kg 450 lbs

Stainless steel robust structure
Two griddle plate heating sections
One separate grilling heating element
12mm thick griddle plate
6 timing programs
Thermostat control on griddle element for rapid response
Adjustable heavy duty legs
Large grease collector
A pull-out crumb tray with angled handle in the front

Model	Griddle Plate Size	Power	Voltage	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTG1	700 x 330 mm 27.5 x 13 inch	6640 W	380 ~ 400V	720 x 457 x 423 mm 28 x 18 x 16.5 inch	855 x 610 x 570 mm 34 x 24 x 22 inch	55 kg 121 lbs	63 kg 139 lbs

HOTDOG & BUN STATION EQUIPMENT

Hotdog steamers, grills, warmers and bun warmers built for quick-serve concession and snack bars.

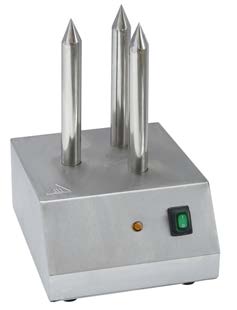

Stainless steel structure
On/off switch for power
Cast iron heating plate for sausage
Ceramic heater for heating spikes
Cylinder size 200*240mm
130 C hi limit for electrical safety of components
Steel wring rack to separate sausages from both sides
Stainless steel water pan
Stainless steel spikes
Anti-slippery rubber foot

Model	Cylinder size	Heating Spike	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PHSWS	Dia. 300 x 240 mm Dia. 12 x 9 inch	Nil	450 W / 230V	240 x 300 x 385 mm 9 x 12 x 15 inch	340 x 340 x 470 mm 13 x 13 x 19 inch	6.5 kg 14 lbs	7.5 kg 16.5 lbs
PBHTP	Nil	3	240 W / 230V	240 x 300 x 360 mm 9 x 12 x 14 inch	370 x 300 x 450 mm 15 x 12 x 18 inch	6.4 kg 14 lbs	8 kg 18 lbs
PHSTW	Dia. 200 x 240 mm Dia. 8 x 9 inch	3	700 W / 230V	467 x 300 x 385 mm 18 x 12 x 15 inch	540 x 340 x 470 mm 21 x 13 x 19 inch	10 kg 22 lbs	11 kg 24 lbs

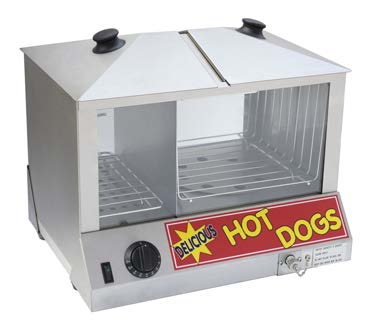

Stainless steel structure
Top loading design
Front and back visual glass
On/off switch for power
Stainless steel heating elements
Holding capacity is up to 100 hotdogs+48 buns
Water reservoir capacity 6.6 Liters
Bakelite handle for top cover
Steaming volume can be adjusted by rotating a cover plate
Anti-slippery rubber foot
Front drain tap is easily accessible
Adjustable temperature from 30~80 C
Grid support in both compartments

Model	Sausage capacity	Bun capacity	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PBWA3	100	48	1000 W / 230 V	475x 375 x 370 mm 19 x 15 x 15 inch	540 x 450 x 450 mm 21 x 18 x 18 inch	13 kg 29 lbs	14 kg 31 lbs

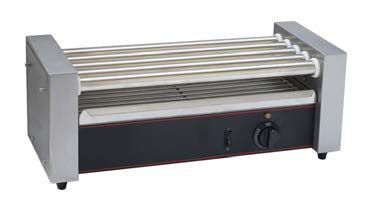

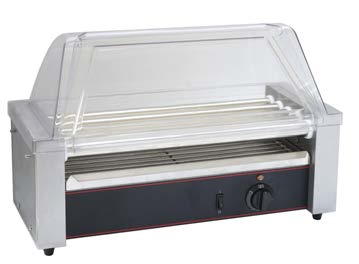

Stainless steel structure
Stainless steel rollers
Energy regulator controlled, durable and robust
On/off switch for rotating of rollers
Stainless steel heating elements
Teflon grease stopper on roller ends
Heavy duty geared-box motor with cooling fan
Bottom grease collector
Wiring grid support inside collector pan to keep hotdog warm
Anti-slippery rubber foot
Available in 4 different sizes
Three models have optional cover

Model	Roller	Optional cover	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PRG05S	5	Yes	400 W / 230 V	590 x 225 x 255 mm 23 x 9 x 10 inch	660 x 290 x 290 mm 26 x 11 x 11 inch	10 kg 22 lbs	11 kg 24 lbs
PRG07S	7	Yes	560 W / 230 V	590 x 330 x 255 mm 23 x 13 x 10 inch	660 x 370 x 290 mm 26 x 15 x 11 inch	13 kg 29 lbs	14 kg 31 lbs
PRG09S	9	Yes	720 W / 230 V	590 x 405 x 255 mm 23 x 15.9 x 10 inch	630 x 460 x 290 mm 25 x 18 x 11 inch	15 kg 33 lbs	17 kg 37 lbs
PRG011S	11	Nil	880 W / 230 V	590 x 480 x 255 mm 23 x 18.9 x 10 inch	640 x 530 x 300 mm 25 x 21 x 12 inch	17 kg 37 lbs	19 kg 42 lbs

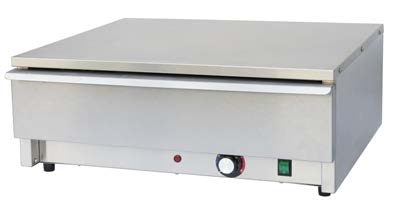

Stainless steel structure
32 buns capacity
93 C thermostat
On/off switch for power
Stainless steel heating elements
100mm depth GN1/1 tray
Water reservoir capacity 6.6 Liters
130 C hi limit for electrical safety of components
Steel wring rack to separate buns from water
Anti-slippery rubber foot
Drawer design with sliding channel

Model	Bun capacity	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PDBG01	32	30 - 93 C	450 W / 230 V	604 x 549 x 239 mm 24 x 22 x 9 inch	650 x 600 x 280 mm 26 x 24 x 11 inch	20 kg 44 lbs	21 kg 46 lbs

WAFFLE & CREPE MAKERS

Countertop waffle bakers and crepe makers for bakeries, cafes and dessert stations.

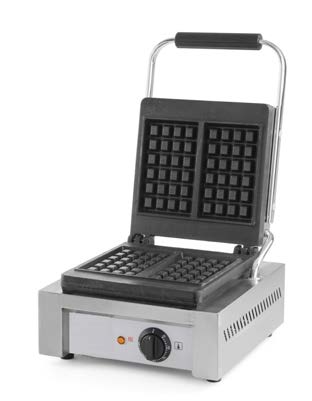

Cast iron plate with ceramic coating
Designed to produce two pieces of 3x5 square pattern waffles
An output of 30 Belgian waffle in one hour
Stainless steel structure
Temperature range 50-320 C
Waffle thickness can be 1” (2.3cm)
Top plate opens up to 90°
EGO thermostat
Stainless steel heating element on both sides
Cast iron plate to hold heat longer
A golden waffle can be done in just 2 minutes
Anti slippery rubber foot

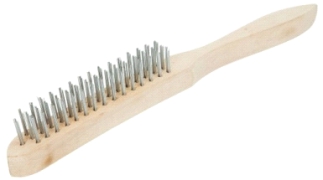

Wire brush for easy cleaning
Bakelite handle for frame ,cool to touch

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWBF	Rectangular	165 x 105 mm 7 x 4 inch	2200 W / 220 ~ 240 V	285 x 360 x 220 mm 11 x 14 x 9 inch	440 x 580 x 400 mm 17 x 23 x 16 inch	16 kg 35 lbs	23 kg 51 lbs
PWBF2	Rectangular	165 x 105 mm 7 x 4 inch	2 x 2200 W / 220 ~ 240 V	600 x 360 x 220 mm 24 x 14 x 9 inch	760 x 590 x 400 mm 30 x 23 x 16 inch	30 kg 66 lbs	45 kg 99 lbs

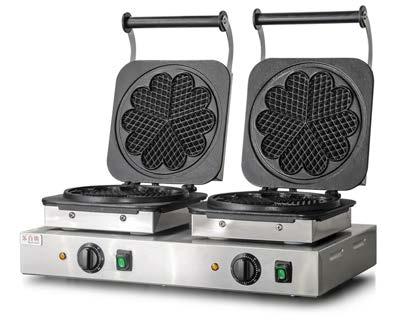

Cast iron plate with ceramic coating
Designed to produce five pieces of heart shaped pattern waffles
An output of 30 Belgian waffle in one hour
Stainless steel structure
Temperature range 50-320 C
Waffle thickness can be 1” (2.3cm)
Top plate opens up to 90°
EGO thermostat
Stainless steel heating element on both sides
Cast iron plate to hold heat longer
A golden waffle can be done in just 2 minutes
Anti slippery rubber foot
Wire brush for easy cleaning
Bakelite handle for frame ,cool to touch

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWBH	Heart shape	Dia. 210 mm Dia. 8 inch	2200 W / 220 ~ 240V	285 x 360 x 220 mm 11 x 14 x 9 inch	515 x 360 x 300 mm 20 x 18 x 12 inch	15 kg 33 lbs	16 kg 35 lbs
PWBH2	Heart shape	Dia. 210 mm Dia. 8 inch	2 x 2200 W / 220 ~ 240V	600 x 360 x 220 mm 24 x 14 x 9 inch	670 x 515 x 300 mm 26 x 20 x 12 inch	30 kg 66 lbs	32 kg 71lbs

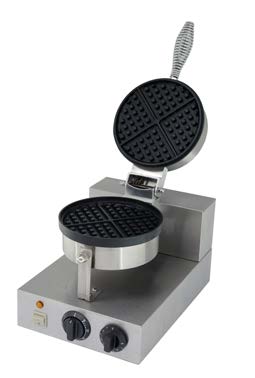

Cast aluminum plate with Teflon coating
An output of 20 Belgian waffle in one hour
Stainless steel structure
Temperature range 50-270 C
Waffle thickness can be 2.3cm
17cm diameter plate
Stainless steel heating element on both sides
Rock on/off switch
Power indicator
5-minute mechanical timer with bell
Anti slippery rubber foot
Steel grid handle

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWB1	Round	Dia. 170 mm Dia. 6.7 inch	1000 W / 220 ~ 240 V	250 x 380 x 300 mm 10 x 15 x 12 inch	460 x 360 x 340 mm 18 x 14 x 13 inch	7 kg 15 lbs	7.5 kg 17 lbs
PWB2	Round	Dia. 170 mm Dia. 6.7 inch	2 x 1000 W / 220 ~ 240 V	500 x 380 x 300 mm 20 x 15 x 12 inch	590 x 455 x 340 mm 23 x 18 x 13 inch	17 kg 37 lbs	19kg 42 lbs

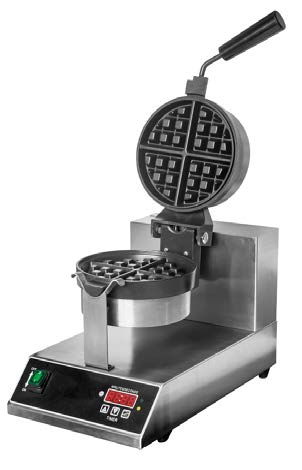

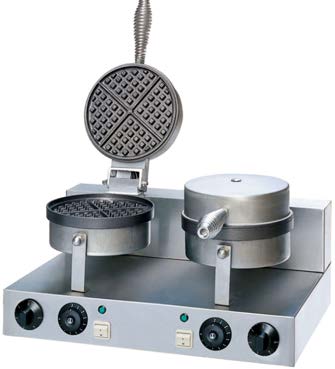

Cast aluminum plate with Teflon coating
An output of 20 Belgian waffle in one hour
Stainless steel structure
Temperature range 124-230 C
Waffle thickness can be 1.25” (3cm)
18cm diameter plate
Rotating plate for better batter distribution
Stainless steel heating element on both sides
Rock on/off switch with illuminator
PCB control with precise temperature and time setting
Buzzer would beep after time is up
Anti slippery rubber foot
Stainless steel crumb collector
Bakelite handle, cool to touch

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWB03D	Round	Dia. 180 mm Dia. 7 inch	1000 W / 220 ~ 240V	255 x 440 x 320 mm 10 x 17 x 13 inch	515 x 315 x 380 mm 20 x 12 x 15 inch	10 kg 22 lbs	11 kg 24 lbs

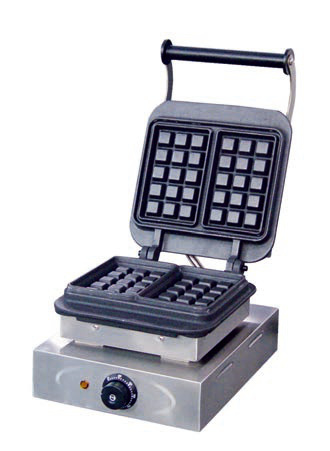

Cast iron plate with ceramic coating
Designed to produce two pieces of 4x6 square pattern waffles
An output of 30 Belgian waffle in one hour
Stainless steel structure
Temperature range 50-320 C
Top plate opens up to 90°
EGO thermostat
Stainless steel heating element on both sides
Hi limiter for safety of electrical components
Cast iron plate to hold heat longer
A golden waffle can be done in just 2 minutes
Anti slippery rubber foot
Removable stainless steel crumb collector
Waffle fork for easy handling of the cooked waffles
Bakelite handle for frame, cool to touch

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing(WxDxH)	NW	GW
PWBS	Rectangular	100 x 160 mm 4 x 6 inch	1500 W / 220 ~ 240 V	470 x 320 x 225 mm 19 x 13 x 9 inch	530 x 390 x 280 mm 21 x 15 x 11 inch	17 kg 37 lbs	18 kg 40 lbs

Cast aluminum plate with Teflon coating
Inner plate can be changed with a screw driver
An output of 20 Belgian waffle in one hour
Stainless steel structure
Temperature range 124-230 C
Waffle thickness can be 1” (2.54cm)
18cm diameter plate
Rotating plate for better batter distribution
Stainless steel heating element on both sides
Rock on/off switch with illuminator PCB control with precise temperature and time setting
Buzzer would beep after time is up
Anti slippery rubber foot
Stainless steel crumb collector
Bakelite handle on both sides, cool to touch

Model	Plate type	Cooking size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWB04A	Round	Dia 180 mm Dia 7 inch	1200 W / 220 ~ 240 V	255 x 600 x 305 mm 10 x 24 x 12 inch	640 x 270 x 310 mm 25 x 11 x 12 inch	11 kg 24 lbs	12 kg 26 lbs
PWB04B	Round	Dia 180 mm Dia 7 inch	1200 W / 220 ~ 240 V	280 x 600 x 300 mm 11 x 24 x 12 inch	640 x 270 x 310 mm 25 x 11 x 12 inch	9 kg 20 lbs	10 kg 22 lbs

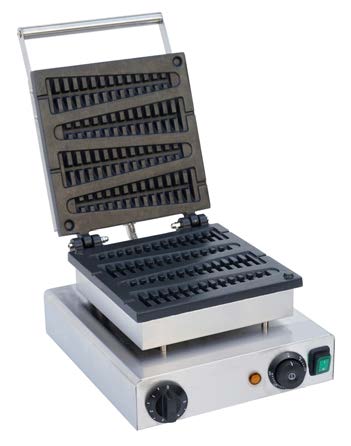

All stainless steel structure
Stainless steel heating element
Upper and lower cast aluminum baking plates, pine tree shape
Timer, 0 - 15 min
Thermostat control from 50 C ~ 220 C (MAX)
ON/OFF switch and orange heating indicator
Hi-limiter for safety, RESET button (at the back)
Cool to touch fiberglass Nylon knobs
Anti slippery rubber foot

Model	Power	Volts / Hz	Baking size	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWBCT	1750W	230V / 50Hz	258 x 255mm 10 x 10 inch	310 x 395 x 230 mm 12 x 15.5 x 9 inch	450 x 350 x 280 mm 18 x 14 x 11 inch	10.5 kg 23 lbs	12.5 kg 37.5 lbs

All stainless steel structure
Stainless steel heating element
Upper and lower cast aluminum baking plates, hotdog shape
Timer, 0 - 15 min
Thermostat control from 50 C ~ 220 C (MAX)
ON/OFF switch and orange heating indicator
Hi-limiter for safety, RESET button (at the back)
Cool to touch fiberglass Nylon knobs
Anti slippery rubber foot

Model	Power	Volts / Hz	Baking size	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWBHT	1550W	230V / 50Hz	320 x 184mm 12.5x 7inch	390 x 335 x 230 mm 15 x 13 x 9 inch	435 x 410 x 305 mm 17 x 16 x 12 inch	10 kg 22 lbs	12 kg 26.5 lbs

All stainless steel structure
Thermostat controlled, durable and robust
Cast iron plate with Teflon coating
Temperature range 30~300 C
Special shape heating element for even heat distribution
Two models come with warmer drawer
Ø 400mm plate
Anti-slippery rubber foot
Power indicator
Wooden crepe spreader
Available in 3 different sizes

Model	Baking plate	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCM1	Dia. 400 mm Dia. 16 inch	30 - 300 C	3000 W / 220 ~ 240 V	450 x 510 x 240 mm 18 x 20 x 9 inch	550 x 490 x 270 mm 22 x 19 x 11 inch	21.5 kg 47 lbs	22.5 kg 50 lbs
PCM2	Dia. 400 mm Dia. 16 inch	30 - 300 C	6000 W / 220 ~ 240 V	870 x 510 x 240 mm 34 x 20 x 9 inch	980 x 620 x 340 mm 39 x 24 x 13 inch	40 kg 88 lbs	48 kg 66 lbs
PCM1R	Dia. 400 mm Dia. 16 inch	30 - 300 C	3000 W / 220 ~ 240 V	Dia. 400 x H200 mm Dia. 16 x H8 inch	510 x 450 x 300 mm 20 x 18 x 12 inch	20 kg 44 lbs	30 kg 66 lbs

All stainless steel structure
Manual gas valve with standby pilot and electrode sparker
Star burner for better heat distribution Large diameter 8-spike burner provide even and constant heating
Cast iron plate with Teflon coating
Flame can be adjusted
Ø 400mm plate
Anti-slippery rubber foot
Wooden crepe spreader
Available in 2 different sizes

Model	Baking plate	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCM1G	Dia. 400 mm Dia. 16 inch	17000 Btu / 5 kW	450 x 510 x 320 mm 18 x 20 x 13 inch	570 x 490 x 360 mm 22 x 19 x 14 inch	26 kg 57 lbs	31 kg 68 lbs
PCM2G	Dia. 400 mm Dia. 16 inch	34000 Btu / 10 kW	870 x 510 x 320 mm 34 x 20 x 13 inch	1000 x 630 x 430 mm 39 x 25 x 17 inch	52 kg 115 lbs	62 kg 137 lbs

TOASTERS & SALAMANDERS

High-speed toasters, sandwich toasters and electric or gas salamanders for finishing and browning.

Infrared quartz tube for prompt heating
Temperature can reach maximum within 30 seconds
Infrared heating efficiency is much better than regular heating
Mirror polished stainless steel structure
Selective switch for different heating groups
Wiring grid protection to protect quartz tube
15 minutes mechanical timer with bell
Insulation on three sides(Top, Left, Right)
Stainless steel crumb collector with handle
Cooling down in seconds after switch is turned off
Anti slippery rubber foot
Removable stainless steel crumb collector
Optional tongs Tongs (optional)

Model	Layer	Timer	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PQT2	Double	15 min.	3000 W / 220 ~ 240 V	440 x 300 x 400 mm 17 x 12 x 16 inch	495 x 340 x 465 mm 20 x 13 x 18 inch	10.2 kg 22 lbs	12 kg 26 lbs
PQT1	Single	15 min.	1700 W / 220 ~ 240 V	440 x 300 x 290 mm 17 x 12 x 11 inch	495 x 340 x 355 mm 20 x 13 x 14 inch	7.8 kg 17 lbs	9 kg 20 lbs
PQT2A	Double	15 min.	3000 W / 220 ~ 240 V	470 x 280 x 360 mm 19 x 11 x 14 inch	520 x 360 x 460 mm 20 x 14 x 14 inch	10.2 kg 22 lbs	12 kg 26 lbs
PQT1A	Single	15 min.	1700 W / 220 ~ 240 V	470 x 280 x 250 mm 19 x 11 x 10 inch	520 x 320 x 370 mm 20 x 13 x 15 inch	7.8 kg 17 lbs	9 kg 20 lbs

Durable stainless steel heater
Infinite switch with continuous function
15 minutes timer with bell
Stainless steel structure
Rack support on both sides
Wiring grid to put food on
Stainless steel crumb collector at the bottom
Control to be on the right side to keep away from heat zone
Cool to touch Bakelite handle on the grid
Anti slippery rubber foot

Model	Timer	Grid	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PES2000	15 min	445 x 250 mm 18 x 10 inch	2000 W / 220 ~ 240 V	570 x 340 x 260 mm 22 x 13 x 10 inch	630 x 440 x 410 mm 25 x 17 x 16 inch	14 kg 31 lbs	15 kg 35 lbs
PES2200	Nil	417 x 335 mm 16 x 13 inch	2200 W / 220 ~ 240 V	570 x 390 x 390 mm 22 x 15 x 15 inch	870 x 545 x 500 mm 21 x 21 x 20 inch	18 kg 40 lbs	20 kg 44 lbs
PES4000	Nil	638 x 295 mm 25 x 12 inch	4000 W / 220 ~ 240 V	800 x 450 x 470 mm 32 x 18 x 19 inch	870 x 500 x 500 mm 34 x 20 x 20 inch	28 kg 62 lbs	29 kg 64 lbs

Durable alloy heater
EGO selective switch for different heating group
Standby function to save energy at 30% power
Conveyor belt speed can be adjusted to have different browning
Geared motor with cooling fan for belt drive
Specially designed cooling system to cool down top
Steel guiding net for easy toast
Slotted cool-to-touch handle for crumb tray
Insulation on three sides(Top, Left, Right)
Stainless steel crumb collector with handle
Front and back discharge can fit different locations
Adjustable plastic leg
Available in 3 size

Model	Output	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCT1	150pcs	1340 W / 220 ~ 240 V	288 x 418 x 387 mm 11 x 17 x 15 inch	510 x 360 x 380 mm 20 x 15 x 17 inch	14 kg 31 lbs	15 kg 33 lbs
PCT2	300pcs	2240 W / 220 ~ 240 V	368 x 418 x 387 mm 15 x 17 x 15 inch	510 x 440 x 380 mm 20 x 12 x 17 inch	16 kg 35 lbs	18 kg 40lbs
PCT3	450pcs	2640 W / 220 ~ 240 V	468 x 418 x 387 mm 18 x 17 x 15 inch	540 x 510 x 380 mm 21 x 20 x 17 inch	21 kg 46 lbs	23 kg 51 lbs

Stainless steel construction
High power for highest efficiency
With adjustable timer
Fit toast 120 x 120 x 20mm
Capacity for 6 or 4 slices
Manual lift lever
Operation indication lamp
With crumb tray
Non-sliding rubber feet
Easy to clean

Model	No. of Slice	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
P4ATSC	4	1.98 kW / 220~240 V	380 x 234 x 222 mm 15 x 9 x 8.7 inch	440 x 315 x 280 mm 12 x 12 x 11 inch	5.8 kg 12.8 lbs	6.6 kg 14.5 lbs
P6ATSC	6	2.86 kW / 220~240 V	480 x 234 x 222 mm 19 x 9 x 8.7 inch	480 x 234 x 222 mm 13 x 11 x 9 inch	7.2 kg 15.8 lbs	8.1 kg 17.8 lbs

Stainless steel housing
Mica heaters for faster and even toasting
SS304 tongs with Bakelite handles
Tong size 5.8 x 5.4 inch
Two slots can be controlled separately by 8-minute timers
Heating indicator
Special crumb tray enhances heat dissipation
Anti-slip feet
Available in different colors

Model	Description	Power	Product (WxDxH)	Packing(WxDxH)	NW	GW
P2ATSH	Sandwich Toaster	230 V / 1.2 kW	203 x 293 x 211 mm 8 x 11.5 x 8 inch	365 x 235 x 320 mm 14 x 9 x 12.6 inch	5.5 kg 12 lbs	6.2 kg 14 lbs

Durable alloy heater
Infinite switch with continuous function
Stainless steel structure
Lifting suspension system to stay any position you want
Wiring grid in the bottom to put food on
Stainless steel crumb collector with handle
Recessed control in the front panel to prevent heat radiant
Cool to touch Bakelite handle on the top
Anti slippery rubber foot

Model	Height distance	Grid	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PES2800L	140 mm 5.5 inch	440 x 320 mm 17 x 13 inch	2800 W / 220 ~ 240 V	450 x 450 x 500 mm 18 x 18 x 20 inch	590 x 570 x 580 mm 23 x 22 x 23 inch	39 kg 86 lbs	41 kg 90 lbs
PES4000L	140 mm 5.5 inch	590 x 320 mm 23 x 13 inch	4000 W / 220 ~ 240 V	600 x 450 x 500 mm 24 x 18 x 20 inch	720 x 590 x 580 mm 28 x 23 x 23 inch	49 kg 108 lbs	51 kg 112 lbs
PES5600L	140 mm 5.5 inch	790 x 320 mm 31 x 13 inch	5600 W / 220 ~ 240 V	800 x 450 x 500 mm 32 x 18 x 20 inch	920 x 590 x 580 mm 36 x 23 x 23 inch	63 kg 139 lbs	65 kg 143 lbs

Cast iron infrared burner
Gas valve with automatic electrode
Adjustable wiring grid to achieve different temperature
Stainless steel structure
Wiring grid to put food on
Stainless steel crumb collector at the bottom
Four burners and six burners are available
Anti slippery rubber foot

Model	Controls	Grid	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PRG14	4	411 x 366 mm 16 x 14 inch	23891 Btu / 7 kW	620 x 440 x 610 mm 24.5 x 17 x 24 inch	730 x 620 x 700 mm 29 x 24 x 28 inch	32 kg 70 lbs	38 kg 84 lbs
PRG16	6	671 x 366 mm 26 x 14 inch	35154 Btu / 10.3 kW	880 x 440 x 620 mm 35 x 17 x 24 inch	990 x 650 x 700 mm 39 x 26 x 28 inch	47 kg 103 lbs	64 kg 141 lbs

WARMING & HOLDING EQUIPMENT

Bain maries, display warmers, hot cupboards, plate warmers and holding cabinets that keep food safe and ready to serve.

Stainless steel structure
Stainless steel sheathed heating elements on top
Heating elements for even heat distribution compared with lamps
Mirror polished radiant plate against heater to improve efficiency
Easy access from 3 sides for food
Can be used to keep French fries or any food warm
Separate on/off switches for lamp and heater
Pan runner inside the cabinet
Basket hanger rod
Perforated liners for drainage of Fries grease
Stainless steel adjustable legs
Stainless steel handle

Model	Lamp	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PVX15	40 W	940 W / 230 V	400 x 759 x 1250 mm 16 x 30 x 49 inch	820 x 460 x 850 mm 32 x 18 x 33 inch	40 kg 88 lbs	52 kg 115 lbs

All stainless steel structure
Stainless steel heating elements
On/off power switch with illuminator
Temperature range 30~60 C
Top storage area with steel rails around to prevent cups falling
Perfect for warming cups, plates
Special shape heating element for even heat distribution
Warming capacity comes total 72 cups
Two separate storage levels

Model	Capacity	Temperature	Power	Product (WxDxH)	Packing(WxDxH)	NW	GW
PCW72	72	30 - 60 C	140 W / 220 ~ 240 V	485 x 445 x 610 mm 19 x 18 x 24 inch	380 x 380 x 605 mm 15 x 15 x 24 inch	14 kg 31 lbs	15 kg 33 lbs

Immersed heater in water to improve heating efficiency
Stainless steel structure
Thermostat controlled, durable and robust
Temperature range is 30-85 C
Anti slippery rubber foot
Heating and power indicators
Available in different sizes

Model	Insert pan size	No. of insert	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PBM2V	GN 1/2, 10 mm GN 1/2, 4 inch	2	1500 W / 220 ~ 240 V	590 x 385 x 230 mm 23 x 15 x 9.1 inch	650 x 400 x 260 mm 26 x 16 x 10 inch	9.5 kg 21 lbs	11 kg 24 lbs
PBM3	GN 1/3, 15 mm GN 1/3, 6 inch	3	1500 W / 220 ~ 240 V	605 x 385 x 280 mm 24 x 15 x 11 inch	660 x 400 x 310 mm 26 x 16 x 12 inch	12 kg 26 lbs	13 kg 29 lbs
PBM4	GN 1/2, 15 mm GN 1/2, 6 inch	4	1500 W / 220 ~ 240 V	695 x 610 x 280 mm 27 x 24 x 11 inch	750 x 620 x 310 mm 30 x 24 x 12 inch	18 kg 40 lbs	18 kg 40 lbs
PBM4V	GN 1/2, 10 mm GN 1/2, 4 inch	4	1500 W / 220 ~ 240 V	700 x 590 x 230 mm 28 x 23 x 9 inch	750 x 620 x 310 mm 30 x 24 x 12 inch	16 kg 35 lbs	18 kg 40 lbs
PBM6V	GN 1/2, 15 mm GN 1/2, 6 inch	6	1500 W / 220 ~ 240 V	695 x 635 x 280 mm 27 x 25 x 11 inch	750 x 650 x 330 mm 30 x 26 x 13 inch	19 kg 42 lbs	21 kg 46 lbs

Water-free operation
Stainless steel heating element
Infinite switch with continuous function
Maintaining food at servable temperature for hours
Light and portable design
Heating indicator
Anti-slip feet

Model	Description	Power	Temperature	Product (WxDxH)	Packing (WxDxH)
PBM165D	Bain Marie	240 V / 750 W	Max 69 C	369 x 570 x 299 mm 14.5 x 22 x 12 inch	670 x 420 x 350 mm 26 x 16.5 x 14 inch

Stainless steel heater at the bottom of the pan to be cleaned easily
Stainless steel structure
Thermostat control, durable and robust
165/205mm depth GN1/1 stainless steel inner pan
Can accommodate all GN size food pans up to 10cm depth
Foods to be served at temperature of 60~63 C
Drain tap(two models)for easy removal of water
Hi limit to prevent dry heating
Anti slippery rubber foot
Heating and power indicators
Available in different sizes

Model	Well depth	Tap	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PBM165	165 mm 6.5 inch	Nil	1200 W / 220 ~ 240 V	355 x 555 x 255 mm 14 x 22 x 10 inch	670 x 375 x 290 mm 26 x 15 x 11 inch	8 kg 18 lbs	9.5 kg 21 lbs
PBM165T	165 mm 6.5 inch	Yes	1200 W / 220 ~ 240 V	355 x 555 x 255 mm 14 x 22 x 10 inch	670 x 375 x 290 mm 26 x 15 x 11 inch	8 kg 18 lbs	9.5 kg 21 lbs
PBM205T	205 mm 8 inch	Yes	1200 W / 220 ~ 240 V	355 x 555 x 295 mm 14 x 22 x 11.6 inch	680 x 380 x 340 mm 27x 15 x 13 inch	8.5 kg 19 lbs	10 kg 22 lbs

Stainless steel heater immersed in water to improve efficiency
Stainless steel structure
Thermostat control, durable and robust
Float switch to prevent dry heating
150mm depth GN1/1 stainless steel inner pan
Comes with S/S GN pan cover
Foods to be served at temperature of 60~63 C
Drain tap(two models)for easy removal of water
EGO 85 C thermostat
Dismantled stand to save shipping volume
Sliding rails on both sides can be folded
Stainless steel bottom shelf for easy storage
Heating and power indicators
Available in 4 and 6 pans

Model	Well depth	Tap	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PBM4T	150 mm 6 inch	Yes	2000 W / 220 ~ 240 V	1430 x 1182 x 800 mm 56 x 47 x 32 inch	1540 x 820 x 460 mm 61x 32 x 18 inch	57 kg 125 lbs	76 kg 168 lbs
PBM6T	150 mm 6 inch	Yes	2000 W / 220 ~ 240 V	2100 x 1182 x 800 mm 83 x 47 x 32 inch	2210 x 820 x 460 mm 87 x 32 x 18 inch	79 kg 174 lbs	99 kg 218 lbs

Mica heater at the well bottom to improve efficiency
Stainless steel structure
Thermostat control, durable and robust
Circuit breaker to protect electrical components
Wet Bain Marie structure for better heat transfer
Foods to be served at temperature of 60~63 C
Cool to touch Bakelite handle on top cover
Inner well capacity is available in 3.5 and 7.5 liters
Anti slippery rubber foot
Power indicator
Available in different size

Model	Insert pan capacity	No. of insert	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PBMP4	3.5 L	1	150 W / 220 ~ 240 V	210 x 210 x 320 mm 8 x 8 x 13 inch	290 x 260 x 340 mm 11 x 10 x 13 inch	3.5 kg 8 lbs	4 kg 9 lbs
PBMP7	6.5 L	1	200 W / 220 ~ 240 V	255 x 280 x 320 mm 10 x 11 x 13 inch	340 x 300 x 340 mm 13 x 12 x 13 inch	4.5 kg 10 lbs	6 kg 13 lbs
PBMP4x2	3.5 L	2	300 W / 220 ~ 240 V	415 x 210 x 320 mm 16 x 8 x 13 inch	490 x 260 x 340 mm 19 x 10 x 13 inch	6.5 kg 14 lbs	7 kg 15 lbs
PBMP4x3	3.5 L	3	450 W / 220 ~ 240 V	610 x 210 x 320 mm 24 x 8 x 13 inch	690 x 260 x 340 mm 27 x 10 x 13 inch	8.8 kg 20 lbs	9.5 kg 21 lbs
PBMP4x4	3.5 L	4	600 W / 220 ~ 240 V	415 x 415 x 320 mm 16 x 16 x 13 inch	590 x 300 x 340 mm 23 x 12 x 13 inch	10.7 kg 24 lbs	12 kg 26 lbs
PBMP7x2	6.5 L	2	400 W / 220 ~ 240 V	505 x 280 x 320 mm 20 x 11 x 13 inch	490 x 460 x 340 mm 19x 18 x 13 inch	7.9 kg 17 lbs	9 kg 20 lbs

Stainless steel structure
Stainless steel heating element
Single door, full-served design
Full-view glass sides and door for elegant merchandising
5-tier Rotating rack for even heating and eye-catching pizza display
Fits pizzas up to 15.7”
Thermostat control
Temperature range up to 85 C (175 F)
Heating indicator light
Two lights
Convenient rocker switches for light, rack motor and heat
Crumb tray at the bottom
Anti-slip rubber feet

Model	Description	Tier Quantity	Power	Rack Size	Product (WxDxH)	Packing (WxDxH)
PDH13	Pizza Display Warmer	5	1200 W / 120 V	Dia. 399 mm Dia. 15.7 inch	490 x 500 x 716 mm 19 x 20 x 28 inch	560 x 540 x 750 mm 22 x 21 x 28 inch

Stainless steel structure
Stainless steel heating element
Single door, full-served design
Full-view glass sides and door for attractive food display
14" x 14" rack size accommodates various food items
Thermostat control
Temperature range up to 85 C (175 F)
Heating indicator light Two lights Convenient rocker switches for light and heat
Crumb tray at the bottom
Anti-slip rubber feet

Model	Description	Tier Quantity	Rack Type	Rack Size	Power	Product (WxDxH)	Packing (WxDxH)
PDH14	Food Display Warmer	4	Square	355 x 355mm 14 x 14 inch	1300 W / 230 V	490 x 500 x 716 mm 19 x 20 x 28 inch	560 x 540 x 750 mm 22 x 21 x 28 inch

Stainless steel heating element at the bottom
Mirror polished stainless steel structure
Thermostat control, durable and robust
Circuit breaker to protect electrical components
Spot light on top for better view of food displayed
Three sides colored posters to attract customer
Temperature display on top to monitor inside temperature
Light switch with green indicator
Swing door for easy opening
Cool to touch Bakelite handle on door
Sloped shelf for better view from customer
Anti slippery rubber foot
Heating indicator
Available in different sizes

Model	Level	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFW1P	3	30 - 85 C	850 W / 220 ~ 240 V	350 x 425 x 500 mm 14 x 17 x 20 inch	560 x 470 x 640 mm 22 x 19 x 25 inch	16 kg 35 lbs	22 kg 49 lbs
PFW1P-5	5	30 - 85 C	850 W / 220 ~ 240 V	350 x 425 x 710 mm 14 x 17 x 28 inch	550 x 460 x 800 mm 22 x 18 x 32 inch	17 kg 37 lbs	29 kg 64 lbs

Perspex flip door on both sides, pass through structure
All stainless steel structure with reinforced frame
Infinite switch controlled, durable and robust
Digital temperature display to monitor inside temperature
Top for dry heating, bottom for humidity heating
Temperature range 30~85 C
Automatic water refilling system with manual bypass
Float switch to prevent heating without water
See-through structure ensures better view of food
Humidity heating ensures food to be served warmly fresh and tasty
Heating lamp switch to be controlled separately
Perforated pans at the bottom
Drainage pipe at one side for easy removal of waste water
Easy access to mica heaters at the bottom for maintenance
Tong holders on one side
Anti slippery rubber foot
Heating indicator

Model	Pan qty.	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PHDS3	Top 330 x 460 mm @ 2pcs Bottom 400 x 600 mm @ 1 pc Top 13 x 18 inch @ 2pcs Bottom 16 x 24 inch @ 1 pc	2840 W / 220 ~ 240 V	914 x 690 x 830 mm 36 x 27 x 33 inch	1050 x 840 x 1010 mm 41 x 33 x 40 inch	60 kg 132 lbs	71 kg 157 lbs
PHDS4	Top 330 x 460 mm @ 3pcs Bottom 400 x 600 mm @ 2pcs Top 13 x 18 inch @ 3pcs Bottom 16 x 24 inch @ 2pcs	4080 W / 220 ~ 240 V	1219 x 690 x 830 mm 48 x 27 x 33 inch	1300 x 840 x 1010 mm 51 x 33 x 40 inch	90 kg 198 lbs	103 kg 227 lbs
PHDS5	Top 16 x 24 inch @ 2pcs Bottom 16 x 24 inch @ 3 pcs Top 16 x 24 inch @ 2pcs Bottom 16 x 24 inch @ 3 pcs	4080 W / 220 ~ 240 V	1536 x 690 x 830 mm 61 x 21 x 33 inch	1620 x 840 x 1010 mm 64 x 33 x 40 inch	120 kg 265 lbs	136 kg 300 lbs

Toughened glass all sides
Thermostat controlled, durable and robust
Temperature display to monitor inside temperature
Temperature range 30~90 C
Cool to touch plastic handle
Water reservoir at the bottom to add humidity when needed
Extra deep reservoir GN1/9 x 2.5” to last for whole day
Three levels of shelves inside chamber
Shelf height can be adjusted
Rubber seal between door and frame to prevent heat loss
Vertical fluorescent lamp on both sides for better food display
Transparent cover on fluorescent lamps
Filament lamp on top for advertising posters to attract customer
On/off switch for lamps
Anti slippery rubber foot
Heating indicator
Available in silver or black color

Model	Capacity	Shelf size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFM26	110 L	580 x 275 mm / 23 x 11 inch 580 x 298 mm / 23 x 12 inch 580 x 318 mm / 23 x 13 inch	1840 W / 220 ~ 240 V	660 x 437 x 655 mm 26 x 17 x 26 inch	750 x 600 x 720 mm 30 x 24 x 28 inch	35 kg 77 lbs	38 kg 84 lbs
PFM36	150 L	820 x 315 mm / 32 x 12 inch 820 x 340 mm / 32 x 13 inch 820 x 360 mm / 32 x 14 inch	1840 W / 220 ~ 240 V	900 x 480 x 590 mm 35 x 19 x 23 inch	990 x 600 x 750 mm 39 x 24 x 30 inch	50 kg 110 lbs	54 kg 119 lbs
PFM48	370 L	1120 x 315 mm / 44 x 12 inch 1120 x 340 mm / 44 x 13 inch 1120 x 360 mm / 44 x 14 inch	2200 W / 220 ~ 240 V	1200 x 480 x 810 mm 47 x 19 x 32 inch	1290 x 600 x 890 mm 51 x 249 x 35 inch	72 kg 158 lbs	75 kg 165 lbs

Toughened glass all sides
Thermostat controlled, durable and robust
Temperature display to monitor inside temperature
Temperature range 30~90 C
Cool to touch plastic handle
Water reservoir at the bottom to add humidity when needed
Extra deep reservoir GN1/9 x 2.5” to last for whole day
Three levels of shelves inside chamber
Shelf height can be adjusted
Rubber seal between door and frame to prevent heat loss
Vertical fluorescent lamp on both sides for better food display
Transparent cover on fluorescent lamps
Filament lamp on top for advertising posters to attract customer
On/off switch for lamps
Anti slippery rubber foot Heating indicator Attractive two-tone colour

Model	Capacity	Shelf size	Power	Product (WxDxH)	Packing(WxDxH)	NW	GW
PFM26N	110 L	580 x 275 mm / 23 x 11 inch 580 x 298 mm / 23 x 12 inch 580 x 318 mm / 23 x 13 inch	1800 W / 220 ~ 240 V	660 x 437 x 655 mm 26 x 17 x 26 inch	730 x 600 x 730 mm 29 x 24 x 29 inch	37 kg 81 lbs	42 kg 93 lbs
PFM36N	150 L	820 x 315 mm / 32 x 12 inch 820 x 340 mm / 32 x 13 inch 820 x 360 mm / 32 x 14 inch	1840 W / 220 ~ 240 V	900 x 480 x 590 mm 35 x 19 x 23 inch	990 x 600 x 690 mm 39 x 24 x 27 inch	50 kg 110 lbs	52 kg 115 lbs
PFM48N	370 L	1120 x 315 mm / 44 x 12 inch 1120 x 340 mm / 44 x 13 inch 1120 x 360 mm / 44 x 14 inch	2200 W / 220 ~ 240 V	1200 x 480 x 810 mm 47 x 19 x 32 inch	126 x 600 x 890 mm 50 x 24 x 35 inch	72 kg 158 lbs	74 kg 163 lbs

Transparent Perspex at all sides
Stainless steel bottom
Thermostat control, durable and robust
Hi limiter to protect electrical components
Cool to touch plastic handle
Water reservoir at the bottom to add humidity when needed
Power switch with green indicator
Anti slippery rubber foot
Heating indicator
Available in single and double levels

Model	Level	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFW260	1	30 - 85 C	250 W / 220 ~ 240 V	500 x 360 x 260 mm 20 x 14 x 10 inch	560 x 430 x 330 mm 22 x 17 x 13 inch	13 kg 29 lbs	14 kg 31 lbs
PFW395	2	30 - 85 C	250 W / 220 ~ 240 V	500 x 360 x 395 mm 20 x 14 x 16 inch	670 x 400 x 570 mm 26 x 16 x 22 inch	14 kg 31 lbs	16 kg 35 lbs

Toughened glass sides and door, curved glass in front
Stainless steel bottom
Thermostat control, durable and robust
Hi limiter to protect electrical components
Cool to touch plastic handle
Water reservoir at the bottom to add humidity when needed
Extra deep reservoir GN1/9 x 2.5” to last for whole day
Inside chamber to be GN1/1 size
Rubber seal between front and side glass to prevent heat loss
Anti slippery rubber foot
Heating indicator
Available in single and double levels

Model	Level	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFW300	1	30 - 85 C	300 W / 220 ~ 240 V	560 x 395 x 310 mm 22 x 16 x 12 inch	690 x 535 x 450 mm 27 x 21 x 18 inch	13 kg 29 lbs	21 kg 46 lbs
PFW500	2	30 - 85 C	500 W / 220 ~ 240 V	560 x 395 x 430 mm 22 x 16 x 17 inch	670 x 520 x 590 mm 26 x 20 x 23 inch	19 kg 42 lbs	26 kg 57 lbs

Toughened glass front and back
All stainless steel structure
Thermostat controlled, durable and robust
Temperature display to monitor inside temperature
Temperature range 30~80 C
Crumb tray at the bottom
Shelf height can be adjusted
Sliding door in the front
On/off switch for lamps
Anti slippery rubber foot
Heating indicator

Model	Shelf	Shelf size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFW580	4	569 x 300 mm 22 x 12 inch	1000 W / 220 ~ 240 V	640 x 360 x 530 mm 25 x 14 x 21 inch	730 x 440 x 630 mm 29 x 17 x 25 inch	22 kg 49 lbs	27 kg 60 lbs
PFW805	5	794 x 300 mm 31 x 12 inch	1500 W / 220 ~ 240 V	865 x 360 x 625 mm 34 x 14 x 25 inch	960 x 440 x 730 mm 38 x 17 x 29 inch	35 kg 77 lbs	40 kg 88 lbs

Adjustable divider rods help food section display
Slant-design shelves for better merchandising
On/Off toggle switch for lights and heating
Temperature range 30~110 C
Heating indicator
High-temp resistant light
Available in different sizes
Anti-slip rubber feet

Model	Description	Power	Product (WxDxH)	Packing (WxDxH)
PBW100	Merchandising Warmer	230V / 2168W	1016 x 626 x 851 mm 40 x 25 x 33.5 inch	1060 x 670 x 900 mm 42 x 26 x 35 inch
PBW120	Merchandising Warmer	230V / 2168W	1216 x 626 x 851 mm 48 x 25 x 33.5 inch	1260 x 670 x 900 mm 50 x 26 x 35 inch
PBW150	Merchandising Warmer	230V / 2968W	1516 x 626 x 851 mm 60 x 25 x 33.5 inch	1560 x 670 x 900 mm 61 x 26 x 35 inch
PBW180	Merchandising Warmer	230V / 2968W	1816 x 626 x 851 mm 71.5 x 25 x 33.5 inch	1860 x 670 x 900 mm 73 x 26 x 35 inch

Stainless steel structure
Good insulation to improve holding efficiency 110 C EGO thermostat controlled, durable and robust
Temperature display on top to read holding temperature
Water-proof on/off switch
Double durable stainless steel round heating element
Forced air circulation with special baffle plate
Stainless steel lock
Four swivel heavy duty 6” castors with brake
Bumpers all around to provide better protection while transportation
Recessed hand-grasping handle on both sides
Rubber seal on the doors
Bottom water tray to keep food humidity when needed
GN2/1 wiring grid
Available in 3 different sizes

Model	Capacity	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PBC1121	22 x GN 1/1	30 - 110 C	2620 W / 230V	780 x 960 x 1755 mm 31 x 38 x 69 inch	1090 x 900 x 1860 mm 43 x 35 x 73 inch	182 kg 400 lbs	218 kg 481 lbs
PBC2221	44 x GN 1/1	30 - 110 C	2620 W / 230V	1540 x 960 x 1755 mm 61 x 38 x 69 inch	1660 x 1020 x 1850 mm 65 x 40 x 73 inch	318 kg 700 lbs	375 kg 827 lbs
PBC0521	10 x GN 1/1	30 - 110 C	2620 W / 230V	780 x 960 x 1355 mm 31 x 38 x 53 inch	1120 x 900 x 1480 mm 44 x 35 x 58 inch	145 kg 319 lbs	159 kg 351 lbs

All stainless steel structure
Thermostat controlled, durable and robust
On/off power switch with illuminator
Temperature range 30~85 C
Adjustable plate holder
Heavy duty door hinge
Special shape heating element for even heat distribution
Cool-to-touch Bakelite handle
Available in 3 different sizes

Model	Capacity	Plate size	Power	Product (WxDxH)	Packing(WxDxH)	NW	GW
PHC1M	30	Max dia 320 mm Max dia 12 inch	400 W / 220 ~ 240 V	400 x 405 x 545 mm 16 x 16 x 22 inch	475 x 440 x 590 mm 19 x 17 x 23 inch	21 kg 46 lbs	24 kg 53 lbs
PHC1	60	Max dia 320 mm Max dia 12 inch	750 W / 220 ~ 240 V	450 x 450x 850 mm 18 x 18 x 34 inch	510 x 490x 900 mm 20 x 19 x 35 inch	32 kg 71 lbs	35 kg 77 lbs
PHC2	120	Max dia 320 mm Max dia 12 inch	1200 W / 220 ~ 240 V	750 x 450 x 850 mm 30 x 18 x 34 inch	790 x 510 x 900 mm 31 x 20 x 35 inch	46 kg 101 lbs	48 kg 106 lbs

All stainless steel structure
On/off power switch
Temperature range 30~85 C
Adjustable plate guiding rail to suite different sizes of plates
Double walled construction reduces heat loss
Stainless steel heating element
Drop-in design
Adjustable spring tension for loading different quantity

Model	Capacity	Plate size	Power	Product (Dia. x H)	Packing (Dia. x H)	NW	GW
PPL3	40	Max dia 300 mm Max dia 12 inch	400 W / 220 ~ 240 V	Dia. 405 x H. 725 mm Dia. 16 x H. 28.5 inch	500 x 500 x 900 mm 20 x 20 x 35 inch	19 kg 42 lbs	32 kg 71 lbs

All stainless steel structure
Thermostat controlled, durable and robust
On/off power switch
Temperature range 30~85 C
Adjustable plate guiding rail to suit different sizes of plate
Double walled construction reduces heat loss
Stainless steel heating element
Cool-to-touch Bakelite handle
Adjustable spring tension for loading different quantity
Four swivel castors with brake
Optional black cover

Model	Capacity	Plate size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PPL1	40	Max dia 300 mm Max dia 12 inch	400 W / 220 ~ 240 V	450 x 485 x 770 mm 18 x 19 x 30 inch	640 x 570 x 1030 mm 25 x 22 x 41 inch	31 kg 68 lbs	43 kg 95 lbs
PPL2	2 x 40	Max dia 300 mm Max dia 12 inch	800 W / 220 ~ 240 V	450 x 910 x 770 mm 18 x 36 x 30 inch	1060 x 570 x 1030 mm 42 x 22 x 41 inch	48 kg 106 lbs	68 kg 150 lbs

All stainless steel structure
Thermostat controlled, durable and robust
On/off power switch
Temperature range 30~85 C
Adjustable plate guiding rail to suit different sizes of plate
Double walled construction reduces heat loss
Stainless steel heating element plus high speed motor for heating evenly
Cool-to touch Bakelite handle
Adjustable spring tension for loading different quantity
Protective bumpers
Four swivel castors with brake
Optional black cover

Model	Capacity	Plate size	Power	Product (WxDxH)	Packing (WxDxH)
PDR1CKS	40	Max dia 300 mm Max dia 12 inch	500 W / 240 V	450 x 543 x 865 mm 18 x 21 x 34 inch	570 x 500 x 805 mm 22 x 20 x 32 inch
PDR2CKS	2 x 40	Max dia 300 mm Max dia 12 inch	1000 W / 240 V	450 x 967 x 865 mm 18 x 38 x 34 inch	1000 x 500 x 805 mm 39 x 20 x 32 inch

All stainless steel structure
Thermostat controlled, durable and robust
On/off power switch
Temperature range 30~85 C
Adjustable plate guiding rail to suit different sizes of plates
Convection design to reduce pre-heating time
Stainless steel heating element
Cool-to-touch Bakelite handle
Adjustable spring tension for loading different quantity
Four swivel castors with brake
Optional black cover

Model	Capacity	Plate size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PPL1C	40	Max dia 300 mm Max dia 12 inch	1310 W / 220 ~ 240 V	435 x 520 x 1025 mm 17 x 21 x 40 inch	476 x 556 x 942 mm 19 x 22 x 37 inch	31 kg 68 lbs	43 kg 95 lbs
PPL2C	2 x 40	Max dia 300 mm Max dia 12 inch	2050 W / 220 ~ 240 V	435 x 815 x 1025 mm 17 x 32 x 40 inch	530 x 910 x 1005 mm 21 x 36 x 40 inch	43 kg 95 lbs	60 kg 132 lbs

Stainless steel structure
Stainless steel heating elements
Separate heater and control for each drawer
Moisture control slides
Analog thermometer
GN1/1, 6” depth pan
Zinc alloy with hard chrome plated foot

Model	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWL02	1 kW / 230 V	740 x 590 x 630 mm 29 x 23 x 25 inch	860 x 710 x 635 mm 34 x 28 x 25 inch	47 kg 103 lbs	55 kg 121 lbs
PWL03	1.5 kW / 230 V	740 x 590 x 885 mm 29 x 23 x 35 inch	870 x 710 x 945 mm 34 x 28 x 375 inch	70 kg 154 lbs	84 kg 185 lbs

Full stainless steel structure
Optional narrow or wide configuration
Digital control panel for precise temperature and time settings
Keep food fresh and moist
Easy to operate drawer design
Two adjustable preset time menus Fit GN 1/1, 4’’ depth pan
Front venting strip, easy to adjust as needed
Temperature range 16-93 C
Hi-limit for safe operation
Ergonomic curved handle with modern design
Available in single, double or triple deck models

Model	Description	Configuration	Drawers	Power	Product (WxDxH)	Packing (WxDxH)
PWL01H	Drawer Warmer	Width	1	230V / 700W	623 x 558 x 296 mm 24.5 x 22 x 12 inch	670 x 610 x 320 mm 26 x 24 x 13 inch
PWL01HN	Drawer Warmer	Narrow	1	230V / 700W	418 x 763 x 296 mm 16 x 30 x 12 inch	470 x 820 x 320 mm 18.5 x 32 x 13 inch
PWL02H	Drawer Warmer	Width	2	230V / 700W	623 x 558 x 481 mm 24.5 x 22 x 19 inch	670 x 610 x 505 mm 26 x 24 x 20inch
PWL02HN	Drawer Warmer	Narrow	2	230V / 700W	418 x 763 x 481 mm 24.5 x 30 x 19 inch	470 x 820 x 505 mm 18.5 x 32 x 20 inch
PWL03H	Drawer Warmer	Width	3	230V / 700W	623 x 558 x 666 mm 24.5 x 22 x 26 inch	670 x 610 x 690 mm 26 x 24 x 17 inch
PWL03HN	Drawer Warmer	Narrow	3	230V / 700W	418 x 763 x 666 mm 16 x 30 x 26 inch	470 x 820 x 690 mm 18.5 x 32 x 17 inch

Stainless steel structure
Four stainless steel cup dispenser
Beverage machines can be installed on top
Underneath cabinet for storage of stuff
Ice storage space in the right part
Heated display counter can be placed on top

Model	Capacity	Pre-set temp	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PWS02	NA	NA	NA	1500 x 760 x 800 mm 59 x 30 x 32 inch	1580 x 830 x 850 mm 62x 33 x 33 inch	69 kg 152 lbs	98 kg 216 lbs

Ideal for kitchens that need to keep take-out food warm
Aluminum foil heater, safe for low-temperature use
Large shelf surface fits different food containers
Independent heat control for each shelf
Temperature range up to 93 C
Digital panel shows temperature and time clearly
Wall-mounting bracket for secure installation
6-inch adjustable legs
Available in 2, 3, 4, or 5-shelf configurations

Model	Description	No. of Shelf	Power	Product (WxDxH)	Packing (WxDxH)
PFWGR2	Heated Shelf Warmer	2	700W / 230 V	1095 x 509 x 554 mm 43 x 20 x 22 inch	1145 x 560 x 620 mm 45 x 22 x 24 inch
PFWGR3	Heated Shelf Warmer	3	1050W / 230 V	1095 x 509 x 912 mm 43 x 20 x 36 inch	1145 x 560 x 980 mm 45 x 22 x 38.5 inch
PFWGR4	Heated Shelf Warmer	4	1400W / 230 V	1095 x 509 x 1270 mm 43 x 20 x 50 inch	1145 x 560 x 1340 mm 45 x 22 x 53 inch
PFWGR5	Heated Shelf Warmer	5	1750W / 230 V	1095 x 509 x 1629 mm 43 x 20 x 64 inch	1145 x 560 x 1700 mm 45 x 22 x 67 inch

Stainless steel structure, two doors design
Stainless steel heating elements
Two blowers on the top for better hot air circulation
Digital thermostat
Temperature range up 140 C
Self-locking latch
Water reservoir on top to add humidity

Model	Description	Power	Product (WxDxH)	Packing (WxDxH)
PHC7	Pass Through Mobile Holding Cabinet	2kW / 220~240V	695 x 786 x 1194 mm 27 x 31 x 47 inch	760 x 890 x 1070 mm 30 x 35 x 42 inch

Stainless steel structure, four doors design
Stainless steel heating elements
Two blowers on the top for better hot air circulation
Digital thermostat
Temperature range up 140 C
Self-locking latch
Water reservoir on top to add humidity

Model	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PHC14	2 kW / 220~240 V	636 x 786 x 2000 mm 25 x 31 x 79 inch	750 x 950 x 2110 mm 30 x 37 x 83 inch	120 kg 264 lbs	150 kg 330 lbs

Full stainless steel construction for easy cleaning
Self contained detachable heating system
110 C EGO thermostat controlled, durable and robust. Pre-set at 85 C for stable control Temperature display on top to read holding temperature Four swivel heavy duty 5" castors with brake
Rigid structure frame body
Oversize base for protecting cabinet body Self-closing doors with magnetic door gaskets provide maximum heat retention and sealing
Removable tray racks for GN2/1
Total 14 tray racks available
Aluminum perforated bun pan

Model	Power	Voltage	Product (WxDxH)	Packing (WxDxH)	NW	GW
PHC1411	2000W	220 - 240V 50Hz	630 x 810 x 1980 mm 25 x 32 x 78 inch	750 x 950 x 2110 mm 30 x 37 x 83 inch	120 kg 264 lbs	150 kg 330 lbs

Stainless steel structure
Glass heater underneath
EGO thermostat adjustable between 30~85 C
Glass size 526x324mm, heating power at 250W
Anti-slippery rubber foot
Optional with handle
Available in two sizes

Model	Glass size	Heating zone	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTC1	526 x 324 mm 21 x 13 inch	1	250 W / 230 V	540 x 380 x 85 mm 21 x 15 x 34 inch	590 x 430 x 150 mm 23 x 17 x 6 inch	5 kg 11 lbs	6 kg 13 lbs
PTC2	526 x 324 mm 21 x 13 inch	2	500 W / 230 V	680 x 580 x 85 mm 27 x 23 x 34 inch	760 x 630 x 150 mm 30 x 25 x 6 inch	10 kg 22 lbs	11 kg 24 lbs

Stainless steel structure
Twin infrared Philip lamps on top
Glass heater underneath
EGO thermostat adjustable between 30~85 C
Glass size 526x324mm, heating power at 250W
On/off switch for heating lamp
Protective cover
Anti-slippery rubber foot

Model	Glass size	Lamp	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTC2F	526 x 324 mm 21 x 13 inch	250 W	1000 W / 230 V	730 x 580 x 550 mm 29 x 23 x 22 inch	810 x 650 x 650 mm 32 x 26 x 26 inch	16 kg 35 lbs	27 kg 60 lbs

Stainless steel structure
Stainless steel sheathed heating elements on top
Heating elements for even heat distribution compared with lamps Mirror polished radiant plate against heater to improve efficiency
Easy access from 3 sides for food
Can be used to keep French fries or any food warm
Separate on/off switches for lamp and heater
Raised base to keep heat away from table base
2.5” depth GN1/1 food pan at the bottom
Optional wiring grid for drainage of Fries grease
Anti-slippery rubber foot

Model	Depth of pan	Lamp	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCS310	60mm 2.5 inch	40 W	940 W / 230 V	330 x 560 x 500 mm 13 x 22 x 20 inch	670 x 400 x 570 mm 26 x 16 x 22 inch	7 kg 15 lbs	9 kg 20 lbs

All stainless steel structure
Stainless steel heater immersed in water for better efficiency
15 liters capacity
Thermostat control from 30~100 C
Power and heating indicators
Drain cock for each tank
Cool to touch fiberglass Nylon knobs
Different sizes of insert pans
Stainless steel legs

Model	Capacity	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTTC4	15 L	30 - 100 C	1.5 kW / 230 V	700 x 600 x 350mm 28 x 24 x 14 inch	720 x 700 x 500mm 28 x 28 x 20 inch	35 kg 77 lbs	43 kg 95 lbs

PIZZA OVENS

Countertop, deck and conveyor pizza ovens sized for every volume of pizza program.

Structure with high temperature black painting 500 C EGO thermostat controlled, durable and robust
600 C temperature display
Durable Alloy heating element on top and bottom
On/off switch for illuminator Aluminum painting panel to resist high temperature Power indicator Visual glass on the door
Cool to touch Bakelite handle
Hearthstone inside to make sure temperature is distributed more evenly
Available in 4 different sizes

Model	Chamber (WxDxH)	Capacity	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PPO6-2	610 x 910 x 140 mm 24 x 36 x 6 inch	6 + 6	30 - 500 C	14.4 kW / 380 V	890 x 1125 x 750 mm 35 x 44 x 30 inch	1240 x 1020 x 900 mm 49 x 70 x 35 inch	154 kg 339 lbs	177 kg 390 lbs
PPO6	610 x 910 x 140 mm 24 x 36 x 6 inch	6	30 - 500 C	7.2 kW / 380 V	890 x 1125 x 430 mm 35 x 44 x 17 inch	1240 x 1020 x 600 mm 49 x 40 x 24 inch	108 kg 238 lbs	116 kg 256 lbs
PPO4-2	610 x 610 x 140mm 24 x 24 x 6 inch	4 + 4	30 - 500 C	8.4 kW / 380 V	910 x 820 x 750 mm 36 x 32 x 30 inch	1020 x 960 x 900 mm 40 x 38 x 35 inch	118 kg 260 lbs	143 kg 315 lbs
PPO4	610 x 610 x 140mm 24 x 24 x 6 inch	4	30 - 500 C	4.2 kW / 380 V	910 x 820 x 430 mm 36 x 32 x 30 inch	1020 x 960 x 600 mm 40 x 38 x 24 inch	68 kg 150 lbs	93 kg 205 lbs

Stainless steel structure
High heat aluminized steel baking chamber
360 C EGO thermostat controlled, durable and robust
Durable stainless steel heating element on top and bottom
15-minute timer as a reminder
Stainless steel handle
Hearthstone inside to make sure temperature is even
Stainless steel adjustable legs Available in 2 different sizes

Model	Chamber (WxDxH)	Compartment	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PP18S	489 x 476 x 241 mm 19.3 x 18.7 x 10 inch	2	30 - 360 C	2850 W / 230 V	584 x 635x 530 mm 23 x 25 x 21 inch	800 x 700 x 680 mm 32 x 28 x 27 inch	55 kg 121 lbs	63.5 kg 140 lbs
PP22S	565 x 552 x 241 mm 22.2 x 22 x 10 inch	2	30 - 360 C	3600 W / 230 V	660 x 711 x 530 mm 26 x 28 x 21 inch	850 x 780 x 510 mm 33 x 31 x 20 inch	79 kg 174 lbs	89 kg 196 lbs

Stainless steel structure
Comes with ceramic hearth in the cavity
12cm deck height
Compact size for small kitchens
Temperature range from 280°F- 680°F
60 minutes timer with bell
Gravity door design
Rubber foot
Bakelite handle

Model	Cavity size	Stone size	Power	Voltage	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEP1ST	410 x 420 x 120 mm 16 x 17 x 5 inch	400 x 400 mm 16 x 16 inch	2000 W	240V / 60Hz	560 x 475 x 266 mm 22 x 19 x 11 inch	650 x 570 x 320 mm 26 x 22 x 13 inch	17 kg 37 lbs	19 kg 42 lbs
PEP2ST	410 x 420 x 120 mm 16 x 17 x 5 inch	400 x 400 mm 16 x 16 inch	3000 W	240V / 60Hz	560 x 475 x 426 mm 22 x 19 x 17 inch	720 x 630 x 560 mm 28 x 25 x 22 inch	33 kg 73 lbs	43 kg 95 lbs

Stainless steel structure
Comes with ceramic hearth in the cavity
12.2 cm deck height Fits pizza up to 18 inch
Compact size for small kitchens
Temperature range from 280~680 F
60 minutes timer with bell
Gravity door design
Rubber foot
Bakelite handle

Model	Cavity Size	Stone Size	Power	Product (WxDxH)	Packing (WxDxH)
PEP2ST-18D	464 x 475 x 122mm 18 x 19 x 5 inch	448 x 455mm 18 x 18 inch	240 V / 3000W	630 x 565 x 435 mm 25 x 22 x 17 inch	700 x 640 x 510 mm 27.5 x 25 x 20 inch

Stainless steel structure
Stainless steel heating elements
Top & bottom heating elements
15 minutes timer with bell
Anti-slippery rubber foot
Crumb collector at the bottom

Model	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PDBS01	1.35 kW / 220~240 V	460 x 380 x 170 mm 18 x 15 x 7 inch	520 x 450 x 220 mm 20 x 18 x 9 inch	7 kg 15 lbs	8 kg 18 lbs

Stainless steel structure
Stainless steel conveyor belt
Top and bottom heating is controlled separately
Durable stainless steel heating element on top and bottom
Cooling fan in the front for cooling down the electrical components
Conveyor speed can be adjusted
Locking plate on both ends to be adjusted easily
Crumb tray on both ends for easy cleaning
Stainless steel adjustable legs
Good for pizza, bread, meat
Available in 2 different sizes

Model	Chamber	Pizza size	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCP12	560 x 385 mm 22 x 15 inch	Dia 300 mm Dia 12 inch	30 - 300 C	6.7kW / 230V	1380 x 555 x 420 mm 54 x 22 x 17 inch	1240 x 720 x 510 mm 49 x 28 x 20 inch	46 kg 101 lbs	65 kg 143 lbs
PCP18	800 x 540 mm 32 x 21 inch	Dia 460 mm Dia 18 inch	30 - 300 C	10.3kW / 380V	1940 x 740 x 1130 mm 76.4 x 29 x 44 inch	1680 x 840 x 650 mm 66 x 33 x 26 inch	110 kg 243 lbs	116 kg 256 lbs

Stainless steel structure
Stainless steel heating elements
Digital control for time and temperature
Conveyor speed can be adjusted Top and bottom heating elements can be adjusted separately
Stainless steel legs

Model	Power	Belt Dimension	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCP12S	6.7kW / 230V	560 x 385 mm 22 x 15 inch	1380 x 555 x 420 mm 54 x 22 x 17 inch	1240 x 720 x 510 mm 49 x 28 x 20 inch	46 kg 101 lbs	62 kg 136 lbs
PCP18S	10.3kW / 380V	800 x 540 mm 31 x 21 inch	1940 x 740 x 1130 mm 76.4 x 29 x 44 inch	1680 x 840 x 650 mm 66 x 33 x 26 inch	116 kg 255 lbs	128kg 282 lbs

Adjustable conveyor speed
Individual temperature control of top and bottom elements by EGO thermostats. “7" is the hottest setting, “1" is the lowest setting
Stainless steel body and conveyor
Durable quartz heater
Geared motor with cooling fan
Locking plate on both ends to be adjusted
Crumb tray on both ends for easy cleaning
Stainless steel adjustable legs and control knobs

Model	Description	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCP105IR	Adjustable speed 10-1/2" belt conveyor oven	2.6 kW / 230V	850 x 447 x 495 mm 33 x 18 x 19 inch	910 x 550 x 455 mm 36 x 22 x 18 inch	29 kg 64 lbs	31 kg 68 lbs
PCP140IR	Adjustable speed 14" belt conveyor oven	3.6 kW / 230V	850 x 522 x 495 mm 33 x 20 x 19 inch	910 x 625 x 540 mm 36 x 24.5 x 21 inch	32 kg 70 lbs	39 kg 99 lbs

Stainless steel structure
18" (46cm) conveyor belt
Electrical temperature control with digital display
Variable digital speed control on conveyor belt
Cook time adjustable from 3 - 20 minutes
Reversible conveyor belt direction
Thermally insulated for energy efficiency
Efficient pre-mixed power gas burner for gas oven
High speed impingement air to ensure consistent baking result
Stackable (up to 3 units high)
Removable belt for easy cleaning
3/4" NPT rear gas connection

Model	Heating Area	Current	Total kW / HR	Temp.	Voltage	Product (WxDxH)	Packing (WxDxH)	NW	GW
PGPX18	540 x 706mm 21 x 28 inch	1.5 Amps	30	60 ~ 280 C	230V 50Hz	1819 x 1006 x 562 mm 72 x 40 x 22 inch	1560 x 1240 x 670 mm 61 x 49 x 26 inch	123 kg 271 lbs	141 kg 311 lbs

BROILERS, ROTISSERIES & HOTPLATES

Gas and electric broilers, rotisseries, kebab machines and hotplates for high-heat, high-output cooking.

High efficiency infrared burners
Flame failure safety control valve
Four burners to be controlled separately
Gear box motor to be rotated
Large oil collector
Distance can be adjusted to have different temperatures
Anti-slippery rubber foot

Model	Burner Qtys	Total BTU/Hr	Product (WxDxH)	Packing (WxDxH)	NW	GW
PRG2	4	38,000 NG 32,000 LP	537 x 639 x 1013 mm 21 x 25 x 40 inch	720 x 600 x 1020 mm 28 x 23.5 x 40 inch	39 kg 86 lbs	45 kg 99 lbs
PRG2-3	3	28,500 NG 24,000 LP	537 x 639 x 843 mm 21 x 25 x 33 inch	720 x 600 x 940 mm 28 x 23.5 x 37 inch	34 kg 75 lbs	40 kg 88 lbs

High efficiency heating elements
EGO energy regulator
Four switches to be controlled separately
Gear box motor to be rotated
Large oil collector
Distance can be adjusted to have different temperatures
Anti-slippery rubber foot

Model	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PPE2	6 kW / 220 - 240V	534 x 607 x 950 mm 21 x 24 x 37 inch	730 x 600 x 1130 mm 29 x 24 x 45 inch	31 kg 48 lbs	48 kg 106 lbs

Stainless steel structure
Individual controlled heating elements
Infinite switch for continues cooking
Top illuminated light for better view of food
Transparent glass doors
Individual motor control function for each rotating spit
Waterproof on/off switch
Cooling fan to cool down the control area temperature
Stainless steel oil collector
Power indicator light
Bakelite handles for each spit
Two 4’’ free-flowing and two 4’’ brake casters

Model	Description	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PKJ3CE	Electric Rotisserie	240 V / 7.5 kW 380 V / 7.5 kW	1005 x 565 x 1371 mm 39.5 x 22 x 54 inch	1170 x 600 x 1240 mm 46 x 24 x 49 inch	129 kg 284 lbs	159 kg 351 lbs
PKJ7CE	Electric Rotisserie	380 V / 12.6 kW	1035 x 565 x 1947 mm 41 x 22 x 77 inch	1200 x 650 x 1870 mm 47 x 26 x 74 inch	209 kg 461 lbs	249 kg 549 lbs

Thermostat control up to 300 C
On/off switch for chamber lights
On/off switch for rotating motor
Heavy duty 80W motor for rotation
Front and back toughened glass
Rubber seal for air tightness to keep heat inside chamber
Double handles on glass door
Oil collector at the bottom
Four baskets to put chicken pieces inside
Optional spit to choose
Swivel castors for easy movement

Model	Capacity	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PER266X	12 birds	30 - 300 C	4500 W / 230 V	810 x 630 x 610 mm 32 x 25 x 24 inch	1130 x 930 x 880 mm 45 x 37 x 35 inch	66 kg 145 lbs	76 kg 168 lbs
PER268X	16 birds	30 - 300 C	6000 W / 230 V	1010 x 630 x 800 mm 40 x 25 x 32 inch	1135 x 780 x 860 mm 45 x 31 x 34 inch	90.5 kg 199 lbs	103 kg 227 lbs

All stainless steel structure
Digital temperature control up to 300 C
Gas infrared burner
Automatic solenoid valve to ensure gas safety
On/off switch for chamber lights
On/off switch for rotating motor
Heavy duty 80W motor for rotation
Front and back toughened glass
Rubber seal for air tightness to keep heat inside chamber Double handles on glass door Oil collector at the bottom
Four baskets to put chicken pieces inside
Optional spit to choose
Swivel castors for easy movement

Model	Capacity	Temperature	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PGR268-1	16 birds	30 - 300 C	32341 Btu / 9.5 kW	1010 x 810 x 800 mm 40 x 32 x 32 inch	1135 x 930 x 860 mm 45 x 37 x 34 inch	91 kg 200 lbs	115 kg 254 lbs

Stainless steel front, galvanized sides
Cast iron open burner, each 18,000 BTU/hr
Flame failure control on each burner
Welded frame structure for best stability
Griddle plate(3⁄4" thickness) with splash guard
8.25”high broiler opening with a built-in rack that can slide
Adjustable heavy duty legs
Large grease collector
A pull-out crumb tray with angled handle in the front
Cabinet with double doors
Piezo igniter for easy starting of pilot
Continuous pilot
Bakelite handle
3⁄4" NPT rear gas connection
Natural gas or LP gas, easy conversion in field

Model	No. of Burner	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PGS24L	3	54,000 Btu / hr	610 x 815 x 965 mm 24 x 32 x 38 inch	740 x 940 x 1000 mm 29 x 37 x 39 inch	126 kg 278 lbs	151 kg 333 lbs
PGS36L	5	90,000 Btu / hr	914 x 815 x 965 mm 36 x 32 x 38 inch	1030 x 940 x 1000 mm 41 x 37 x 39 inch	186 kg 410 lbs	213 kg 470 lbs

All stainless steel structure
Cast iron crown burner
Cast iron grate on top
Standby pilot for instant start of main burner
Gas control valve with solenoid inside for safety operation
Cool to touch fiberglass Nylon knobs
Easy conversion between different types of gases
Stainless steel legs

Model	Burner	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTBZ4R	4	100,000 Btu / 29.3 kW	609 x 731 x 320 mm 24 x 29 x 13 inch	720 x 690 x 600 mm 28 x 27 x 24 inch	44 kg 97 lbs	58 kg 128 lbs

All stainless steel structure
4 cast iron flat burner
Lava rock to hold heat and give off more evenly Lava rock to give food a taste of charcoal Two separate cooking zones Standby pilot for instant start of main burner
Gas control valve with solenoid inside for safety operation
Cool to touch fiberglass Nylon knobs
Cast iron cooking grate on top to give burning marks
Oil to be collected through channels in the front
Easy conversion between different types of gases
Piezo ignition for easy start of flame
Observation holes for the main flame status
Stainless steel legs

Model	Controls	Cooking zone	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PTSK2R	2	560 x 324 mm 22 x 13 inch	54800 Btu / 16 kW	600 x 612 x 470 mm 24 x 24 x 19 inch	780 x 710 x 650 mm 31 x 28 x 26 inch	60 kg 132 lbs	75 kg 165 lbs

Stainless steel housing
Instant heating in 10 seconds
Perfect for rapidly cooking any kind of meat - beef, chicken, pork
4 infrared burner help cook food quickly and lock the natural juice
Infrared burner temperature 700~1000℃to penetrate inside the meat core
Cast iron grill with 5-height locking positions
Roll-out design grill for easy loading, unloading and cleaning
Flame failure safety system
Grill stopper to prevent grill falling off
Two separate heating sections, independent control
Temperature display for precise control
Stainless steel oil collector
Stainless steel cabinet with dual doors

Model	Power	Grill Size	Gas Pressure	Rated Heat Input	Product (WxDxH)	Packing (WxDxH)	NW	GW
PQRCM362S	0.03 kW / 220V	515 x 585 mm 20 x 23 inch	2.0 kPa (NG) 2.8 kPa (LPG)	14.0 kW (NG) 11.5 kW (LPG)	1020 x 700 x 1405 mm 40 x 27.5 x 55 inch	1130 x 960 x 1500 mm 40 x 27.5 x 55 inch	230 kg 507 lbs	252 kg 556 lbs

SPECIALTY COOKING EQUIPMENT

Charcoal ovens, steamers, marinators, breading tables and other specialty stations for focused prep work.

Stainless steel structure
Flexible heating foils outside the chamber
130 C maximum to cook food slowly
Probe function to detect core temperature of food
Timing function to cook food
PCB control panel, easy to operate
Rubber foot

Model	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PSCDU	1.2 kW / 220~240 V	495 x 690 x 420 mm 20 x 27 x 17 inch	760 x 556 x 460 mm 30 x 22 x 18 inch	26 kg 57 lbs	27 kg 59 lbs

Stainless steel structure
Stainless steel tank with leak proof gasket
Vacuum pump to marinate meat much faster
4 swivel castors for mobility
Timer control inside
Buzzer alarms when marinating cycle is finished
Vacuum meter to monitor inside
On/off switch to control vacuum pump
Two plastic containers （one perforated pan）
Deeper flavor profile can be infused inside proteins
Marinate on demand to avoid waste

Model	Capacity/cycle	Timing	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEM809V	36 kg 79 lbs	10 Min	250 W / 230 V	950 x 550 x 750 mm 37.5 x 21.5 x 29.5 inch	1030 x 590 x 1030 mm 41 x 23 x 41 inch	52 kg 114 lbs	62 kg 137 lbs

Stainless steel structure
Stainless steel tank with leak proof gasket
4 swivel castors for mobility
Timer control inside
Buzzer alarms when marinating cycle is finished
Two plastic containers (one perforated pan)
Deeper flavor profile can be infused inside proteins
Marinate on demand to avoid waste

Model	Capacity/cycle	Timing	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PEM900	36 kg 79 lbs	10 Min	250 W / 230 V	950 x 550 x 750 mm 37.5 x 21.5 x 29.5 inch	1030 x 590 x 1030 mm 41 x 23 x 41 inch	38 kg 84 lbs	48 kg 106 lbs

Full stainless steel construction
Durable and reliable ceramic heating elements
Special design bottom heater for dump pan heating
Divider optionally to segregate different product placed in the dump pan Raised edge around dump basket and pre-pack area for easier cleaning
Poly carbonate shield for pre-pack to keep packed fries fresh and warm
Low wattage rating and less energy consumption
Easy to clean
GN pan 1/3 size, 6" deep
French fries rack

Model	Top Heater Power	Lamp	Voltage	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFFB6C	550W	60W x 2	220 - 240V	680 x 600 x 676 mm 27 x 24 x 26.5 inch	800 x 720 x 830 mm 32 x 28 x 33 inch	28 kg 62 lbs	32 kg 71 lbs

Full stainless steel construction
Durable and reliable ceramic heating elements
Special design bottom heater for dump pan heating
Divider optionally to segregate different product placed in the dump pan Raised edge around dump basket and pre-pack area for easier cleaning
Poly carbonate shield for pre-pack to keep packed fries fresh and warm
Low wattage rating and less energy consumption
Easy to clean
GN pan 1/3 size, 6" deep
French fries rack

Model	Top Heater Power	Lamp	Pan Heater Power	Voltage	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFFB6	550W	60W x 2	110W	220 - 240V	660 x 720 x 1500 mm 26 x 28 x 59 inch	720 x 830 x 1620 mm 36 x 33 x 64 inch	58 kg 128 lbs	62 kg 137 lbs

Full stainless steel construction
Durable and reliable ceramic heating elements
Special design bottom heater for dump pan heating
Divider optionally to segregate different product placed in the dump pan Raised edge around dump basket and pre-pack area for easier cleaning
Poly carbonate shield for pre-pack to keep packed fries fresh and warm
Low wattage rating and less energy consumption
Easy to clean
GN pan 1/3 size, 6" deep
French fries rack

Model	Top Heater Power	Lamp	Pan Heater Power	Voltage	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFFB8	550W x 2	60W x 4	110W	220 - 240V	800 x 720 x 1500 mm 31.5 x 28 x 59 inch	910 x 830 x 1600 mm 36 x 33 x 63 inch	80 kg 176 lbs	103 kg 227 lbs

Stainless steel structure
Infrared ceramic heaters on top
Heating bulbs on top
Mirror polished radiant plate against heater to improve efficiency
Can be used to keep French fries or any food warm
Dumping pan partition to separate different food
Dumping pan and wiring rack can be interchanged
Cabinet underneath for storage of stuff
Perforated pan for drainage of Fries grease
Stainless steel adjustable legs
Front stainless steel box and GN pans

Model	Pan heater	Lamp	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PFFB10	110 W	4 x 60 W	220 - 240 V / 1450W	1010 x 720 x 1500 mm 40 x 28 x 59 inch	1180 x 840 x 1600 mm 46 x 33 x 63 inch	85 kg 187 lbs	115.5 kg 255 lbs

All stainless steel frame structure
Manual safety gas valve with electrode sparker
Crown burner flame delivers 6kw power
Copper flame spreader
Cast aluminum burner support to provide perfect gas and air mixture
Cast iron heavy duty 400x400mm cooking grate with enamel coating
Conversion kit for different gas types Designed for commercial use

Model	Grate size	Power	Product (WxDxH)	Packing (WxDxH)	NW	GW
PNRC300	400 x 400 mm 16 x 16 inch	20478 Btu / 6 kW	400 x 400 x 390 mm 16 x 16 x 15 inch	475 x 460 x 425 mm 19 x 18 x 17 inch	10 kg 22 lbs	16 kg 35 lbs

All stainless steel frame structure
Manual safety gas valve with electrode sparker
Crown burner flame delivers 10 kW power
Copper flame spreader
Cast aluminum burner support to provide perfect gas and air mixture Cast iron heavy duty 580 x 580mm cooking grate
Conversion kit for different gas types
Designed for commercial use

Model	Gas Type	Total input	Product (WxDxH)	Packing (WxDxH)	NW	GW
PNRC580	G20, G25, G30, G31	10 kW / Hr	580 x 580 x 385 mm 22 x 23 x 15 inch	730 x 440 x 630 mm 29 x 17 x 25 inch	21 kg 46 lbs	27 kg 59 lbs

Stainless steel housing and interior
2-in-1 charcoal-fueled grill and oven combination
Enclosed ash drawer and grease collector ensure clean workspace
Infuses deep coal-fired flavor with 40% less charcoal consumption
Cook all types of ingredients
Can achieve temperature between 500-700 F (250-350 C)
Control airflow through the lower and upper dampers to regulate intensity of embers
Retaining natural flavor in food, bring out a unique taste
Searing and grilling the meat, enhancing the meat flavor
Heating rack on top to keep food warm at 110 F (45 C)
Door color can be made to order, grey, red, blue, black or yellow
Thermometer on the door
Spring door hinge system makes opening and closing easy

Model	Fire up time	Initial charcoal load	Production	Charcoal load duration	Grill size	Product (WxDxH)	Packing (WxDxH)	NW	GW
PCG1	45 minutes	8 kg 17.5 lbs	50 kg 110 lbs	6 Hr	500 x 538 mm 20 x 21 inch	622 x 735 x 1256 mm 24 x 29 x 49 inch	820 x 720 x 1270 mm 32 x 28 x 50 inch	182 kg 401lbs	212kg 467bs
PCG1L	45 minutes	10 kg 22 lbs	70 kg 154lbs	7 Hr	510 x 622 mm 20 x 24.5 inch	768 x 735 x 1323 mm 30 x 29 x 52 inch	870 x 840 x 1235 mm 34 x 33 x 49 inch	200 kg 441lbs	260kg 573bs
PCG2	45 minutes	16 kg 35 lbs	100 kg 220 lbs	8 Hr	510 x 762 mm 20 x 30 inch	908 x 735 x 1348 mm 36 x 29 x 53 inch	1020 x 870 x 1740 mm 40 x 34 x 68.5 inch	328.5 kg 723lbs	371.5kg 818bs

Stainless steel structure
Automatic sifting system, hygiene and efficiency
Powerful brush motor
Removable brush blender and sifter screen
Start/stop button for brush motor
Wire grid for resting food after breading
Bottom dough ball pan and flour collection pan
Includes dipping basket and bowl
Indicator lights shows operation status
Available in two configurations: dipping bowls at the front (PABT1B) or at the sides (PABT1A)
Four 4’ brake casters

Model	Description	Voltage	Power	Product (WxDxH)	Packing (WxDxH)
PABT1A	Breading table with sifting system	220 ~ 240V / 50-60Hz	200 W	900 x 500 x 860mm 35 x 20 x 34 inch	920 x 520 x 910mm 36 x 20 x 36 inch
PABT1B	Breading table with sifting system	220 ~ 240V / 50-60Hz	200 W	1220 x 762 x 860mm 48 x 30 x 34 inch	1250 x 790 x 910mm 49 x 31 x 36 inch

Stainless steel robust structure
Cast iron hotplate Ø400mm
Infinite temperature control 100 - 350 C
Connection cable 2m long
The cookware used should not be less than Ø400mm
On/off switch

Model	Description	Plate size	Power	Voltage	NW	GW
PCM1SC	Electric Stool Cooker	Dia. 400mm 16 inch	5 kW	380 ~ 400V	23 kg 50.5 lbs	29 kg 63.5 lbs
PCM1SF	Electric Stool Cooker	Dia. 400mm 16 inch	5 kW	380 ~ 400V	25 kg 55 lbs	31 kg 68 lbs
PCM2SC	Electric Stool Cooker	Dia. 400mm 16 inch	5 kW + 5kW	380 ~ 400V	42 kg 92.5 lbs	48 kg 105.5 lbs
PCM2SF	Electric Stool Cooker	Dia. 400mm 16 inch	5 kW + 5kW	380 ~ 400V	46 kg 101 lbs	52 kg 114.5 lbs

Stainless steel structure
Digital display for accurate temperature setting
Temperature range 30-110 C
Water tank level gauge for easy monitoring
Automatic water filling function
Buzzer alerts during dry-heating or temperature sensor fault for safe operation
Suitable for steaming various types of dim sum
Bakelite cover handle, cool to touch
Drain cock
Anti-slip rubber feet

Model	Description	Power	Temperature Range	Product (WxDxH)	Packing (WxDxH)
PZBJ4	4-hole Food Steamer	220 V / 3660 W 230 V / 4000 W	30~110 C	474 x 504 x 250 mm 19 x 20 x 10 inch	530 x 510 x 265 mm 21 x 20 x 10 inch

ACCESSORIES

Filtration and support accessories that extend the life and safety of your kitchen equipment.

Stainless steel structure
Reverse pump for easy suction of oil
Pre-filtering 300-micron screen basket
Second deeper 10-micron filtration
Quick disconnect filtering hose
3.5 GPM pump

Model	Power	Voltage	Filtering Capacity	Capacity	Product (WxDxH)	Packing (WxDxH)	NW	GW
POF55	1/3 HP	230V 50Hz	3.5 GPM	25 kg 55 lbs	456 x 727 x 492 mm 18 x 29 x 19 inch	810 x 500 x 640 mm 32 x 20 x 25 inch	51 kg 112 lbs	56 kg 124 lbs
POF85	1/3 HP	230V 50Hz	3.5 GPM	39 kg 85 lbs	505 x 906 x 586 mm 20 x 36 x 23 inch	810 x 500 x 680 mm 32 x 20 x 27 inch	51 kg 112 lbs	58.5 kg 129 lbs
POF110	1/3 HP	230V 50Hz	3.5 GPM	50 kg 110 lbs	506 x 907 x 572 mm 20 x 36 x 23 inch	1000 x 550 x 690 mm 39 x 22 x 27 inch	62 kg 137 lbs	66.5 kg 147 lbs

Professional Catering Equipment

FRYERS

Electric Fryer

Electric Fryer

Electric Fryer

Electric Auto Lift-up Fryer

Corn Dog Fryer

Gas Fryer

Gas Fryer

Electric Fryer

Electric Fryer

Electric Fryer

Electric Fryer

Electric Fryer

Electric Fryer

Electrical Fryer

Commercial Electric Donut Fryer

Gas Fryer

Electric Fryer

PASTA & NOODLE COOKERS

Electric Pasta Boiler

Noodle Boiler

Gas Noodle Boiler

Electric Noodle Boiler

CONVECTION OVENS & STEAMERS

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Electric Proofer

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Convection Oven

Static Oven

Electric Boilerless Combi Steamer

Electric Boilerless Combi Steamer

GRIDDLES & PANINI GRILLS

Panini Grill

Panini Grill

Panini Grill

Glass-Ceramic Panini Grill

Glass-Ceramic Panini Grill

Electric Griddle

Electric Griddle

Gas Griddle

Electric Griddle

Electric Hob

Gas Griddle

Electric Griddle

Electric Griddle

Electric Griddle Toaster

HOTDOG & BUN STATION EQUIPMENT

Hotdog Steamer

Hotdog Warmer

Hotdog Grill

Bun Warmer

WAFFLE & CREPE MAKERS

Waffle Baker

Waffle Baker

Waffle Baker

Waffle Baker

Waffle Baker

Waffle Baker

Waffle Baker

Waffle Baker

Electric Crepe Maker

Gas Crepe Maker

TOASTERS & SALAMANDERS

Toaster

Electric Salamander

Toaster

Slice Toaster
